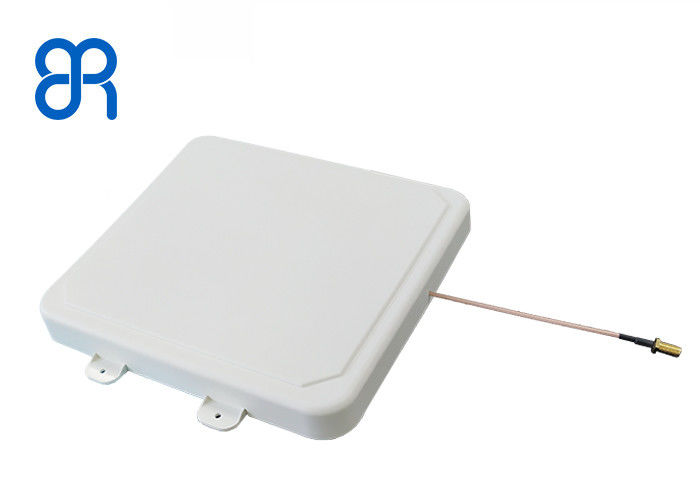

902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector

902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector

  • 902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector
  • 902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector
902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-50
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5works
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Name: UHF RFID Antenna,8dBic RFID Antenna Size: 190 Mm×190 Mm×18.6 Mm
Weight: 0.73kg Material: FRP,Aluminum
Color: Milk-white Operational Temperature: -40°C~+ 85°C
Storage Temperature: -40°C~+ 85°C Email: Lyh@brrfid.com

8dBic Circular Polarization RFID Antenna With with high gain and low VSWR



As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.

Product Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties: The compact and artistic antenna is suitable for all kinds of severe environment for its dual waterproof design with Gasket and silicone and strengthening rib of shell.

Main Applications

BRA-50 antenna is retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management

902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector 0

Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1

Gain

>8dBic

Beamwidth

75º x 75º

Polarization

Circular Polarization

Axial ratio

<3 dB

Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA-Female



Mechanical Specifications

Size 190 mm×190 mm×18.6 mm
Weight 0.73kg (bracket excluded)
Material

FRP,Aluminum

Color

Milk-white

Production Class IP65
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃





Figure 3 VSWR

902MHz~928MHz 8dBic UHF RFID Antenna With SMA-Female Connector 1





Strength advantage

1) 13,000 square meters RFID production base

2) One-on-one service for more than 20 senior RFID engineers

3) 500 production employees guarantee production capacity

4) Serving more than 2,000 integrators and cooperating with Fortune 500 companies

5) Won the “National High-tech Enterprise” and “Shenzhen High-tech Enterprise” Double High Enterprise
