FR4 Stainless Steel UHF RFID Antenna IOT Handset Application With Circular Polarization

FR4 Stainless Steel UHF RFID Antenna IOT Handset Application With Circular Polarization

FR4 Stainless Steel UHF RFID Antenna IOT Handset Application With Circular Polarization
video
FR4 Stainless Steel UHF RFID Antenna IOT Handset Application With Circular Polarization
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-7
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5 work days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Name: Small RFID Antenna,UHF RFID Antenna Size: 61 Mm×61 Mm×16.3 Mm
Weight: 30g Material: FR4, Stainless Steel
Color: Green Green: -40℃~+ 85℃
Email: Cliff.lee@broadradio.com.cn Website: Www.brrfid.com
High Light:

rfid desktop reader

,

uhf rfid reader antenna

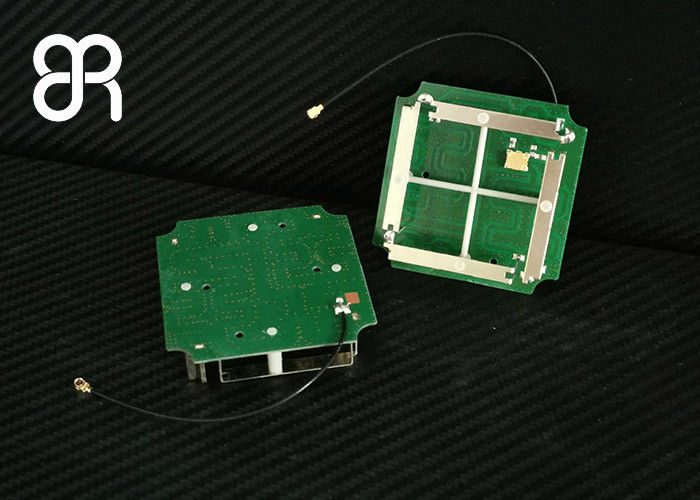

BRA-07 IOT handset application small size UHF RFID Antenna with circular polarization



Product advantages

1) A wide range of products to meet various distance requirements;

2) Independent research and development of products, free technical and after-sales service;

3) Source factory direct sales, the price is 15%-20% lower than other companies;

4) One-stop service for product customization design, testing and production



Product Features

1) The antenna is used for universal far field applications in the UHF band
2) It belongs to a circularly polarized antenna with high gain and low standing wave.
3) The connector type is CMMX (IPEX optional)
4) Small size and high sensitivity
5) BRA-07 Antenna is of convenient application in UHF RFID handheld reader.



FR4 Stainless Steel UHF RFID Antenna IOT Handset Application With Circular Polarization 0



Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain > 3 dBic
Polarization Circular Polarization
Axial ratio <3 dB
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type CMMX(IPEX optional)





Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
