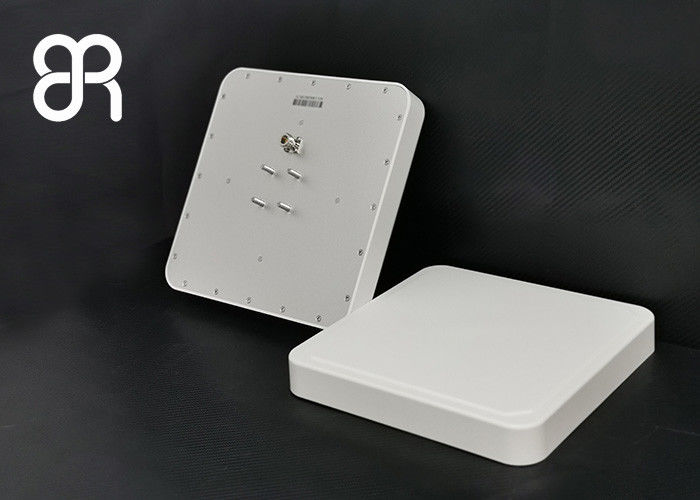

N-50KFD Female Connector Waterproof BRA-01L Linear RFID Antenna

N-50KFD Female Connector Waterproof BRA-01L Linear RFID Antenna

N-50KFD Female Connector Waterproof BRA-01L Linear RFID Antenna
video
N-50KFD Female Connector Waterproof BRA-01L Linear RFID Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-01L
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Name: Linear RFID Antenna,UHF RFID Antenna Size: 258mm×258mm×36mm
Weight: 0.91kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Production Class: IP67
Operating Temperature: -40℃~+ 85℃ Storage Temperature: -40℃~+ 85℃
High Light:

long range rfid reader antenna

,

linear polarization antenna

BRA-01L Gain > 9 dBi UHF Linear RFID Antenna With N-50KFD N-type female Connector IP67



As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.

Product Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

Product Applications:BRA-01L Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



N-50KFD Female Connector Waterproof BRA-01L Linear RFID Antenna 0

Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain > 9 dBi
H side HPBW 70°
E side HPBW 70°
Polarization Linear Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type N-50KFD (N-type female female) (single input port)



The main test capabilities

Antenna gain

Antenna directivity

Beamwidth

Antenna efficiency

Radiated power

Label sensitivity

Label performance



Provide custom design services

Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
