Vehicle Management RFID Antenna UHF , High Gain Long Range RFID Reader Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-44
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-8 work days
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Frequency: 902~928MHz Size: 586mm×206mm×57mm
Gain: 12dBic Polarization: Linear Polarization
Weight: 1.61kg Material: ABS+ Aluminum Parts
Color: White Name: Narrow Beam Antenna
High Light:

linear polarization antenna

,

rfid antenna uhf

BRA-44 vehicle management Linear RFID Antenna with high gain and narrow beam

Product features

1. The antenna has high gain and narrow beam characteristics, and is a general antenna for UHF RFID applications.
2. The antenna has a reading distance of 15-20 meters
3, the antenna is suitable for long-distance applications, using linear polarization design
4. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
5. BRA-44 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.

Performance Specifications

Frequency Range  902~928MHz
VSWR ≤1.3:1
Gain 12 dBic
H side HPBW 40°
E side HPBW 90°
Polarization Linear Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

N Female



Mechanical Specifications

Size 586mm×206mm×57mm
Weight 1.61kg
Material ABS+ aluminum parts
Color white
Production Class IP65
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



Vehicle Management RFID Antenna UHF , High Gain Long Range RFID Reader Antenna 0

Figure 1. Antenna Photo

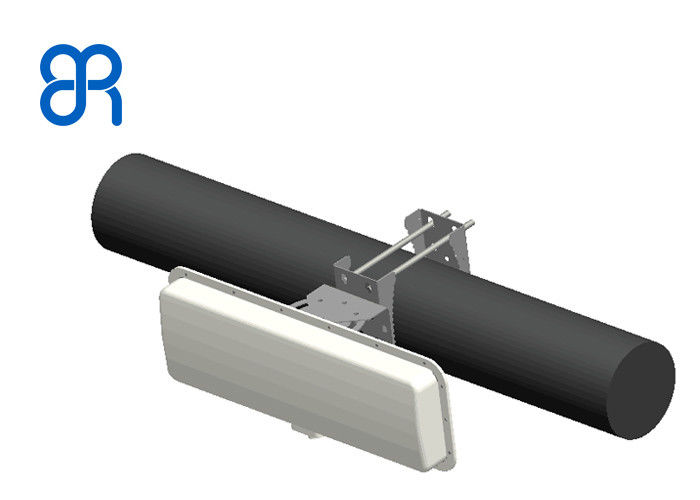

Mounting

The BRA-44 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.



Vehicle Management RFID Antenna UHF , High Gain Long Range RFID Reader Antenna 1

Antenna pattern



Vehicle Management RFID Antenna UHF , High Gain Long Range RFID Reader Antenna 2
