10 DBic UHF Narrow Beam Antenna For Access Control / Personnel / Asset Management
  • 10 DBic UHF Narrow Beam Antenna For Access Control / Personnel / Asset Management
  • 10 DBic UHF Narrow Beam Antenna For Access Control / Personnel / Asset Management

10 DBic UHF Narrow Beam Antenna For Access Control / Personnel / Asset Management

Place of Origin China Shenzhen
Brand Name broadradio
Model Number BRA-16
Product Details
Frequency:
860MHz~960MHz
Size:
460 Mm×220 Mm×44 Mm
Gain:
10dBic
Polarization:
Circular Polarization
Weight:
1.65kg
Material:
ABS Board, Aluminum
Connector Type:
SMA-50KFD Female
Color:
White
High Light:

circular polarized antenna

,

circular polarised antenna

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
3-5work days
Payment Terms
T/T, Paypal
Product Description

UHF 10 dBic Narrow Beam Antenna for access control, personnel, asset management

Product Model

BRA-16 Antenna

Product Applications

BRA-16 Antenna is of convenient application in access control, personnel management, asset management and other applications.

Product Function and Features

Electrical Properties: It is a general antenna for terminal applications with directional feature, narrow beam, high gain and etc.

Mechanical Properties: suitable for various access control, personnel, asset management and other fields.

Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain 10 dBic
Polarization

Circular Polarization

Axial ratio

<3 dB

Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA-50KFD Female



Mechanical Specifications

Size

460 mm×220 mm×44 mm

Weight 1.65kg
Material

Acrylic board, aluminum

Color White
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



10 DBic UHF Narrow Beam Antenna For Access Control / Personnel / Asset Management 0

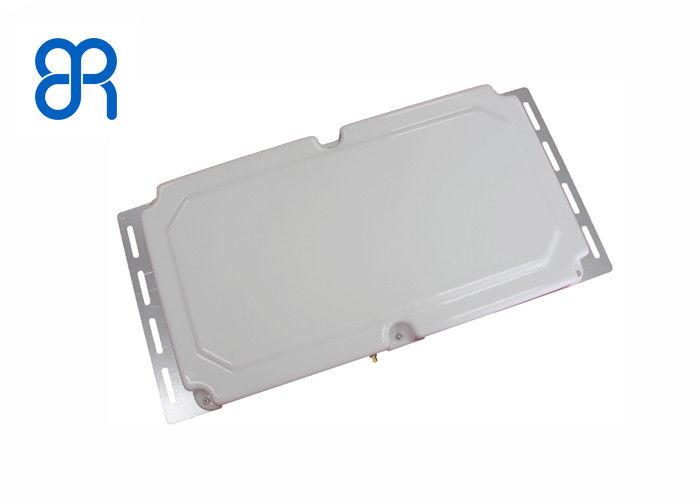

Figure 1. Antenna Photo



Antenna Pattern

10 DBic UHF Narrow Beam Antenna For Access Control / Personnel / Asset Management 1
