Product Details:
Payment & Shipping Terms:
|
Frequency: | 902 - 928 MHz | Name: | Anti Metal Tag |
---|---|---|---|
Chip: | Alien H3 | Function: | Read / Write |
Size: | 79mm X 20mm X 3mm | Material Of Shell: | PCB, 3M Adhesive |
Color: | Black | Website: | Www.brrfid.com |
High Light: | rugged rfid tags,anti metal rfid tag |

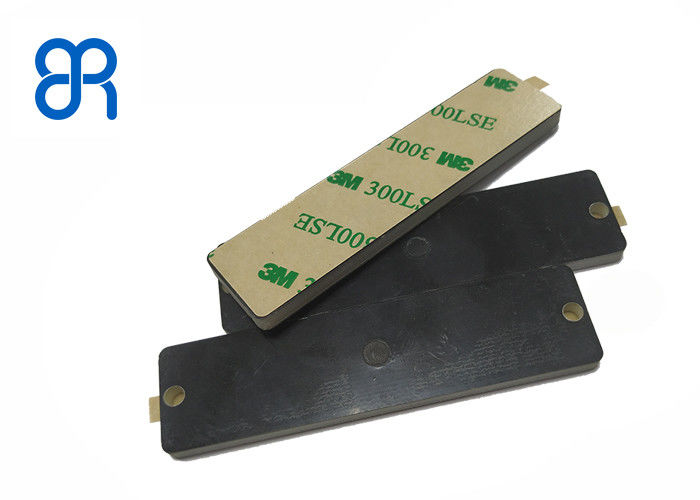

BRT-30 PCB Anti-Metal Tag is designed specifically for complex metal environments. It has the advantages of large reading distance, high sensitivity and easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.
Performance Features | |
Frequency range: | 902 - 928 MHz |
Sensitivity: | -18dBm |
Chip: | Alien H3 |
Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
Function: | Read / Write |
Chip Features | |
E P C : | 96-EPC |
Chip memory : | 512 User bits |
T I D: | 64 bits |
Access password: | 32 bits |
Kill password: | 32 bits |
Data retention: | 10 years 10 years |
Write endurance: | 100,000 cycle 100,000 cycle |
Mechanical Features | |
Size: | 79mm x 20mm x 3mm |
Material of shell: | PCB, 3M adhesive |
Color: | Black |
Weight: | 6g |
Installation method : | 3M adhesive |
Protection class: | IP65 |
Operating Temperature : | -20℃ to +85℃ |
Applications | |
Logistics, tobacco, metal rack and metal goods management, gun control, medical equipment management and etc. |
