12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

    • 12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management
    • 12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management
    • 12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management
  • 12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: broadradio
    Model Number: BRA-44

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Standard Export Carton, Foam and Protective Film
    Delivery Time: 7-10 work days
    Payment Terms: T/T,Paypal
    Contact Now
    Detailed Product Description
    Frequency: 902MHz~928MHz Size: 586mm×206mm×57mm
    Gain: 12dBic Polarization: Linear Polarization
    Weight: 1.61kg Material: ABS+ Aluminum Parts
    Color: White Name: Linear Polarization Antenna

    12dBic Linear polarization UHF RFID Antenna for Vehicle management



    Product features

    1. Antenna is a general-purpose antenna for UHF RFID applications with high gain and narrow beam.
    2. The antenna has a reading distance of 15-20 meters
    3. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
    4. BRA-44 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.

    Performance Specifications

    Frequency Range 902~928MHz
    VSWR ≤1.3:1
    Gain 12 dBic
    H side HPBW 40°
    E side HPBW 90°
    Polarization Linear Polarization
    Relative humidity 5%~95%
    Impedance 50±1Ω
    Connector Type

    N Female



    Mechanical Specifications

    Size 586mm×206mm×57mm
    Weight 1.61kg
    Material ABS+ aluminum parts
    Color white
    Production Class IP65
    Operating Temperature -40℃~+ 85℃
    Storage Temperature -40℃~+ 85℃



    12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

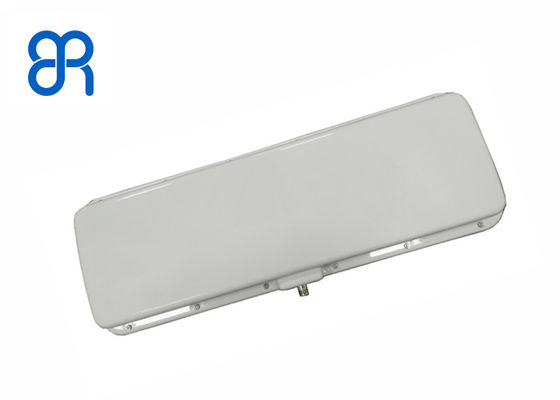

    Figure 1. Antenna Photo



    Mounting

    The BRA-44 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
    The antenna mount is an option and the customer can choose as needed.



    12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management



    Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
