Circularly Polarized Long Range RFID System For Retail / Conference / Baggage

Circularly Polarized Long Range RFID System For Retail / Conference / Baggage

    • Circularly Polarized Long Range RFID System For Retail / Conference / Baggage
    • Circularly Polarized Long Range RFID System For Retail / Conference / Baggage
    • Circularly Polarized Long Range RFID System For Retail / Conference / Baggage
  • Circularly Polarized Long Range RFID System For Retail / Conference / Baggage

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: broadradio
    Model Number: BRA-40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Standard Export Carton, Foam and Protective Film
    Delivery Time: 3-5work days
    Payment Terms: T/T, PayPal
    Contact Now
    Detailed Product Description
    Frequency: 902MHz~928MHz Size: 210 Mm×210 Mm×18.7 Mm
    Gain: 8 DBic Polarization: Circular Polarization
    Name: Long Range RFID Antenna,8dBic RFID Antenna Material: Aluminum Gold+ABS
    Connector Type: SMA-50K Color: Silver And White
    High Light:

    long distance rfid antenna

    ,

    long range uhf rfid antenna

    BRA-40 circularly polarized Long Range RFID Antenna for Retail/conference/baggage

    The main test capabilities

    Antenna gain

    Antenna directivity

    Beamwidth

    Antenna efficiency

    Radiated power

    Label sensitivity

    Label performance

    Product features and features

    Features: Simple appearance, ultra-thin technology design, excellent technology, simple installation, and the use of various models of UHF readers at home and abroad can maximize the performance of the card reader.
    Universal antenna for UHF band RFID applications with high gain, low standing wave, and axial ratio bandwidth.

    Main use and scope of application

    The BRA-40 antenna can be easily applied to RFID applications in the UHF band, such as retail, conference management, personnel management, RFID motion timing, baggage handling, warehousing, logistics, and asset management.

    Performance Specifications

    Frequency Range 902MHz~928MHz
    VSWR ≤1.3:1
    Gain 8 dBic
    HPBW 95°×95°
    Polarization

    Circular Polarization

    Relative humidity 5%~95%
    Impedance 50±1Ω
    Connector Type

    SMA-K



    Mechanical Specifications

    Size

    210 mm×210 mm×18.7 mm

    Weight 318g
    Material

    Aluminum gold+ABS

    Color Silver and white
    Operating Temperature -20℃~+ 65℃
    Storage Temperature -20℃~+ 85℃



    Circularly Polarized Long Range RFID System For Retail / Conference / Baggage 0

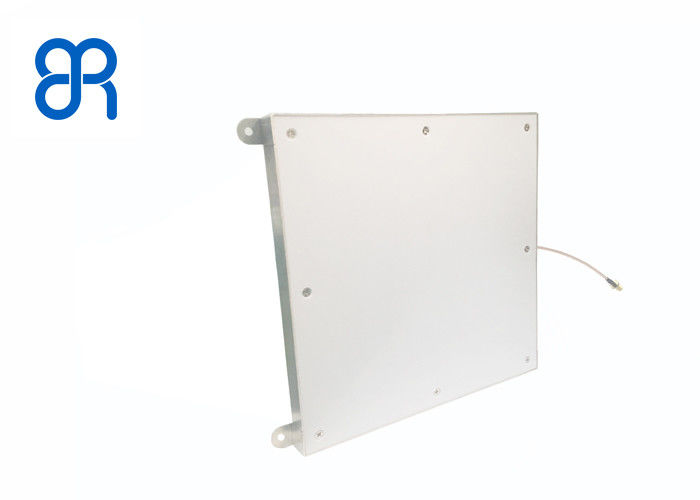

    Figure 1. Antenna Photo



    Antenna Pattern

    Circularly Polarized Long Range RFID System For Retail / Conference / Baggage 1

    Frequently asked questions and precautions


    The BRA-40 antenna is a circularly polarized directional antenna. When using it, care should be taken to adjust the tilt angle of the antenna to obtain the best reading performance.
    The BRA-40 antenna can be used outdoors, but it is not suitable for use in an acid/alkaline environment.

    Circularly Polarized Long Range RFID System For Retail / Conference / Baggage 2
