Parking Management System Long Range UHF RFID Antenna With Cable Weight 0.8KG

Parking Management System Long Range UHF RFID Antenna With Cable Weight 0.8KG

Parking Management System Long Range UHF RFID Antenna With Cable Weight 0.8KG

Product Details:

Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-01SR

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 5-8work days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Frequency: 860-960MHz Size: 258mm×258mm×36mm
Gain: 8.5dBic Axial Ratio: <3 DB
Weight: 0.8kg Name: Long Range UHF RFID Antenna
Color: Milk-white Production Class: IP65
High Light:

long range uhf antenna

,

long range uhf rfid antenna

860-960MHz UHF Long Range RFID Antenna With cable in parking management system

Product Function and Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.

Mechanical Properties: circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.

Product advantage: low profile, excellent VSWR and axial ratio parameter, anti-UV aging and high protection class.



Product Applications

BRA-01SR Antenna is of convenient application in middle-distance parking management system, archives management, logistic management, asset management, storage management, personnel management and other IoT fields. Applications: warehouse, logistics distribution center, airport, hospital, logistics terminal, goods transfer belt, file cabinet and etc.



Performance Specifications

Frequency Range 860MHz ~ 960MHz
VSWR ≤1.3:1
Gain > 8.5 dBic
Polarization Right-hand
Axial ratio <3 dB
Front-to-Back Ratio ≥ 15dB
Impedance 50±1Ω
Connector Type RP-TNC Male
Cable Length 1m (Customizable)



Mechanical Specifications

Size 258mm×258mm×36mm
Weight 0.8kg
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP65
Operating Temperature -40℃~+ 85℃

Storage Temperature

-40℃~+ 85℃





Parking Management System Long Range UHF RFID Antenna With Cable Weight 0.8KG 0

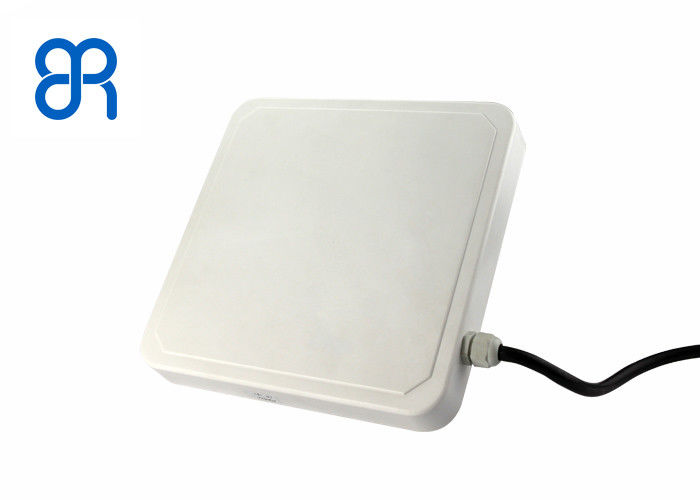

Figure 1. Antenna Photo

Mounting dimensions



Parking Management System Long Range UHF RFID Antenna With Cable Weight 0.8KG 1

Mounting

BRA-01SR Antenna can be mounted on any steel frame or column with 3M adhesive or customized bracket and be connected with reader through coaxial cable. It can be installed easily according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is not original accessory.
