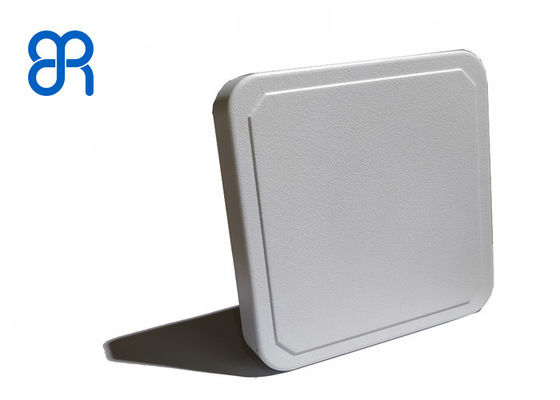

Small Size UHF Near Field RFID Antenna / RFID Reader And Antenna Weight 0.2KG
  • Small Size UHF Near Field RFID Antenna  / RFID Reader And Antenna Weight 0.2KG
  • Small Size UHF Near Field RFID Antenna  / RFID Reader And Antenna Weight 0.2KG
  • Small Size UHF Near Field RFID Antenna  / RFID Reader And Antenna Weight 0.2KG

Small Size UHF Near Field RFID Antenna / RFID Reader And Antenna Weight 0.2KG

Place of Origin China Shenzhen
Brand Name broadradio
Model Number BRA-02N
Product Details
Frequency:
902MHz~928MHz
Size:
128mm×128mm×37mm
Gain:
3dBic
Connector Type:
SMA-50KFD Female
Weight:
0.2kg
Material:
Engineering Plastics ASA, RF-4
Color:
White
Production Class:
IP67
High Light:

rfid reader and antenna

,

large rfid antenna

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton
Delivery Time
5-10 work days
Payment Terms
T/T, PayPal
Product Description

Small size 3dBic UHF Near Field RFID Antenna frequency 902-928 MHz



Product Function and Features

Electrical Properties: UHF RFID applications near-field antenna

Mechanical Properties: small size, no blind spot, Controllable distance and etc.



Product Applications

BRA-02N Antenna is of convenient application in near field.

Performance Specifications

Frequency Range

902MHz~928MHz

VSWR ≤1.5:1
Gain > 3 dBic
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA-50KFD Female



Mechanical Specifications

Size 128mm×128mm×37mm
Weight 0.2kg
Material Engineering plastics ASA,RF-4
Color white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



FAQ and Cautions

BRA-02N Antenna is a near field antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-02N Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
