Place of Origin | China Shenzhen |
Brand Name | broadradio |
Model Number | BRA-20 |
1) 13,000 square meters RFID production base
2) One-on-one service for more than 20 senior RFID engineers
3) 500 production employees guarantee production capacity
4) Serving more than 2,000 integrators and cooperating with Fortune 500 companies
5) Won the “National High-tech Enterprise” and “Shenzhen High-tech Enterprise” Double High Enterprise
Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.
The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.
Frequency Range |
902Mhz-928Mhz(865MHz~868MHz) |
VSWR | ≤1.3:1 |
Gain | ≥ 4 dBic |
Radiation angle | horizontal 120° × vertical 120° |
Axial ratio | <3dB |
Polarization | Circular polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | MMCX (IPX optional) |
Size |
60 mm×60 mm×15.6 mm |
Weight | 25g |
Material |
PCB |
Color | green |
Operating Temperature | -40℃~+ 85℃ |
Storage Temperature | -40℃~+ 85℃ |

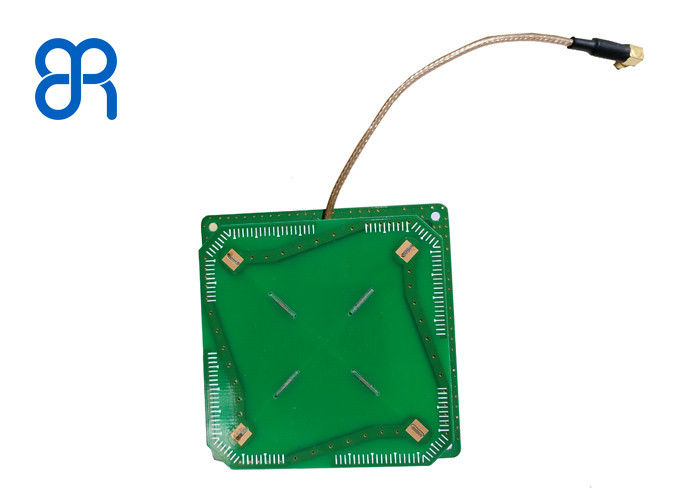

Figure 1. Antenna Photo
Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
