BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface

BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface

    • BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface
    • BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface
    • BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface
  • BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface

    Product Details:

    Place of Origin: China shenzhen
    Brand Name: Broadradio
    Model Number: BRD-D16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Standard Export Carton, Foam and Protective Film
    Delivery Time: 5-8 work days
    Payment Terms: T/T,PayPal
    Contact Now
    Detailed Product Description
    Frequency: 920MHz ~ 925MHz Standards: ISO 18000-6C
    Working Temperature: -20 ° C ~ 60 ° C Output Power: 30dbm (adjustable)
    Size: 197×116×32.5mm Power Supply: AC 220V±10% 47~63 Hz
    Machine Power Consumption: About 45W Communication Interface: RS-232 (DB9), RJ45

    BRD-D16 RFID intelligent positioning system with Linux and API interface



    The BRD-D16 intelligent positioning system supports the EPC C1 G2 (ISO18000-6C) protocol. It consists of a UHF RFID reader and multiple antenna units. It can instantly read the position information of the item in the antenna partition, enabling fast and accurate inventory and Find items with a positioning accuracy of up to 3cm and a standard RS232 or RJ45 interface for easy connection to the software platform. The product is especially suitable for warehousing, books and file management.



    BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface

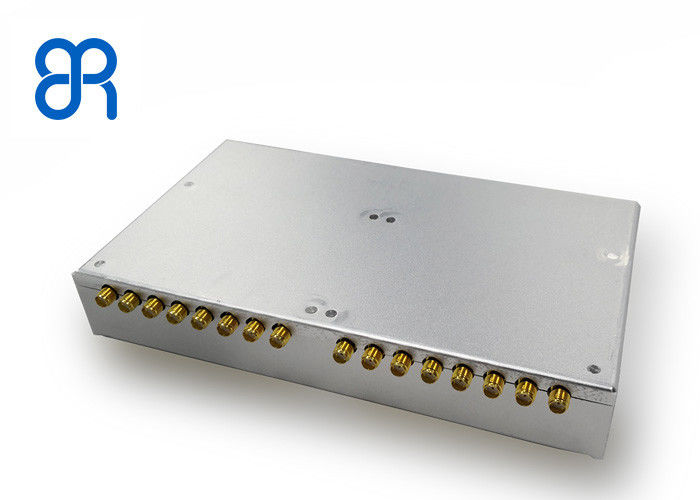

                                                     Figure 1 positioning system control box



     the special features


     Independent intellectual property design
     With Linux operating system
     Support EPC C1 G2 (ISO18000-6C) protocol
     Working frequency 920~925MHz
     Output power 30dbm (adjustable)
     Have registration, inventory, and query functions
     Large positioning capacity, a system unit can accommodate up to 256 locations
     High positioning accuracy, up to 3cm depending on application requirements
     Inventory rate is fast, inventory 256 location information time 2 minutes
     Port dwell time is freely set in units of 10ms, which can adapt to more application requirements.
     Secondary development is convenient, providing a complete API interface
     Built-in four-way optical isolation GPI, GPO port, can expand more application requirements



    Product specifications

    Control box size 197×116×32.5mm
    Antenna size a variety of options depending on the application
    Frequency 920MHz ~ 925MHz
    Compliance with standards ISO 18000-6C
    Working temperature  -20 ° C ~ 60 ° C
    Storage temperature  -30 ° C ~ 70 ° C
    Ambient humidity 5% to 95% RH, no condensation
    Power supply AC 220V±10% 47~63 Hz
    Machine power consumption about 45W
    Communication interface RS-232 (DB9), RJ45



    structure size

    BRD-D16 RFID Smart Cabinet Intelligent Positioning System With Linux / API Interface



    Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
