Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4

Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4

    • Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4
    • Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4
    • Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4
  • Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: broadradio
    Model Number: BRA-06

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Standard Export Carton, Foam and Protective Film
    Delivery Time: 5-8work days
    Payment Terms: T/T, Paypal
    Contact Now
    Detailed Product Description
    Frequency: 860-960MHz Size: 190mm×190mm×18.6mm
    Gain: 8dBic Polarization: Circular Polarization
    Name: Long Range RFID Antenna Material: Plastics, FR4
    Color: Luxury Gold Connector Type: SMA-50KFD Male

    860-960MHz 8dBic Long Range RFID Antanna in retail, conference management

    Product Applications

    BRA-06 Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.

    Product Function and Features

    Electrical Properties: It is a general antenna with high gain, low VSWR, wide AR band and etc.

    Mechanical Properties: pleasing appearance, ultra-thin design, sophisticated techniques, easy to install, it fits all the domestic and foreign model UHF readers and brings the best performance of the reader.

    Performance Specifications

    Frequency Range 860MHz~960MHz
    VSWR ≤1.3:1
    Gain 8 dBic

    H side HPBW

    102°

    E side HPBW

    102°

    Polarization Circular Polarization
    Relative humidity 5%~95%
    Impedance 50±1Ω
    Connector Type

    SMA-50KFD Male



    Mechanical Specifications

    Size 190mm×190mm×18.6mm
    Weight 65g
    Material

    Plastics, FR4

    Color

    Luxury gold

    Production Class IP54
    Operating Temperature -40℃~+ 85℃
    Storage Temperature -40℃~+ 85℃



    Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4

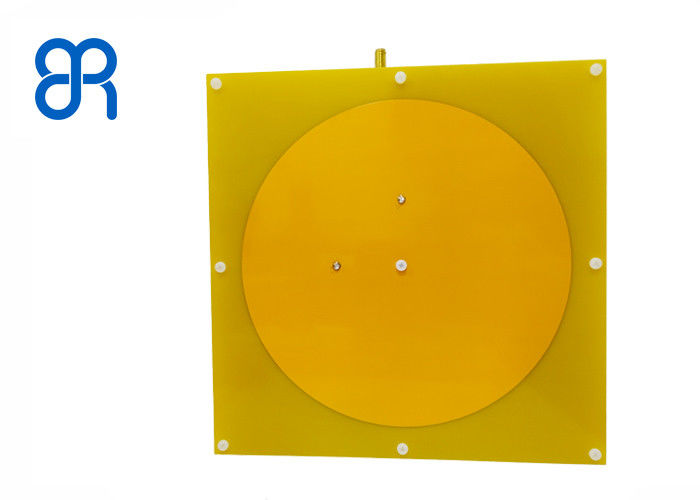

    Figure 1. Antenna Photo



    Antanna Pattern

    Low VSWR Long Range RFID Antenna 860-960MHz 8dBic Material Plastics / FR4

    FAQ and Cautions

    BRA-06 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

    BRA-06 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
