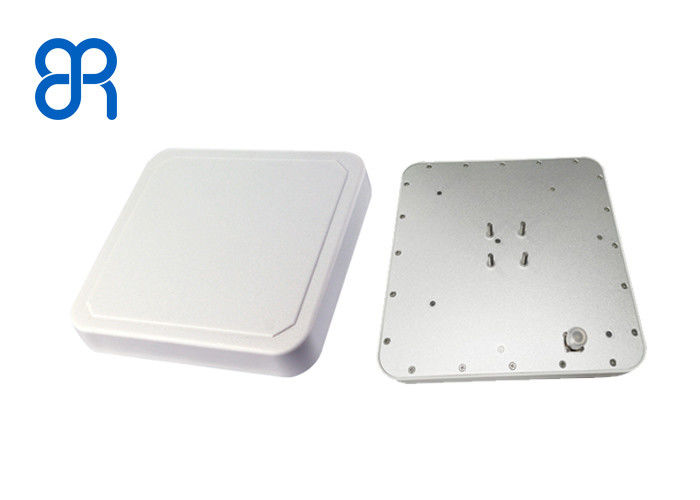

Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics

Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics

    • Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics
    • Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics
  • Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: broadradio
    Model Number: BRA-01CR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Standard Export Carton, Foam and Protective Film
    Delivery Time: 2-5 work days
    Payment Terms: T/T, Paypal
    Contact Now
    Detailed Product Description
    Frequency: 860-960MHz Size: 258*258*36mm
    Gain: 9dBic Polarization: Circular Polarization
    Weight: 0.91kg (bracket Excluded) Name: UHF RFID Antenna,Long Range RFID Antenna
    Color: Milk-white Reading Distance: 12 M

    BRA-01CR Gain 9dBic Long Range RFID Antenna for access control/warehousing/logistics



    Product features
    1,Universal antenna for UHF band RFID applications
    2,with high gain, low standing wave characteristics
    3,reading distance, up to 12 meters
    4,beautiful appearance, small waterproof design with waterproof ring and silicone, protection grade IP67
    5,The outer shell is designed with reinforced ribs and is suitable for various harsh environments.

    6,The BRA-01CR antenna can be easily used in RFID applications in UHF bands such as access control, warehousing, logistics, and asset management.



    Performance Specifications

    Frequency Range 860MHz~960MHz
    VSWR ≤1.3:1
    Gain > 9 dBic
    H side HPBW 70°
    E side HPBW 70°
    Polarization Circular Polarization
    Relative humidity 5%~95%
    Impedance 50±1Ω
    Connector Type N Female



    Mechanical Specifications

    Size 258mm×258mm×36mm
    Weight 0.91kg (bracket excluded)
    Material Engineering plastics ASA, aluminum
    Color Milk-white
    Production Class IP67
    Operating Temperature -40℃~+ 85℃
    Storage Temperature -40℃~+ 85℃





    Antenna pattern



    Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics

    installation

    The BRA-01CR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.

    The antenna mount is an option and the customer can choose as needed.

    Gain 9dBic Long Range Uhf Rfid Antenna Low Standing Wave For Warehousing / Logistics

    FAQ and Cautions

    BRA-01CR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

    BRA-01CR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
