Product Details:
Payment & Shipping Terms:
|
Name: | 8dBic Antenna,UHF RFID Antenna | Size: | 190mm×190mm×18.6mm |
---|---|---|---|
Weight: | 0.73kg | Material: | Plastics, Aluminum, FR4 |
Color: | Luxury Gold Or Green | Production Class: | IP54 |
Operating Temperature: | -40℃~+ 85℃ | Storage Temperature: | -40℃~+ 85℃ |
High Light: | rfid desktop reader,uhf rfid reader antenna |

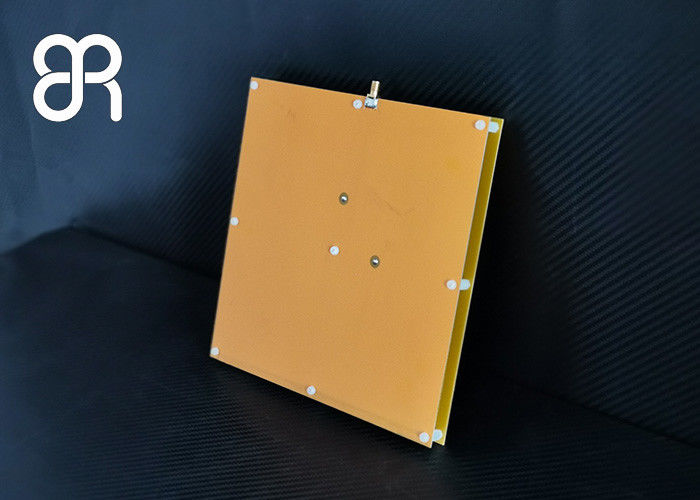

BRA-06 Gain 8dBic UHF RFID Antenna ltra-thin design,Circular polarization VSWR ≤1.3:1
As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.
1) Ultra-thin design of the antenna, the thickness is only 18.6mm
2)Electrical Properties: It is a general antenna with high gain, low VSWR, wide AR band and etc.
3)Mechanical Properties: easy to install, it fits all the domestic and foreign model UHF readers and brings the best performance of the reader.
4)BRA-06 Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.
Frequency Range | 860MHz~960MHz |
VSWR | ≤1.3:1 |
Gain | 8 dBic |
H side HPBW | 102° |
E side HPBW | 102° |
Polarization | Circular polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | SMA Male (Customizable) |
1) 13,000 square meters R & D production base
2) One-on-one service for more than 20 senior R&D engineers
3) 500 production employees guarantee production capacity
4) Serving more than 2,000 integrators and cooperating with Fortune 500 companies
5) Won the “National High-tech Enterprise” and “Shenzhen High-tech Enterprise” Double High Enterprise
