Aluminum Plastic ASA UHF RFID Reader 33dBm 200KHz Reading Distance 20m BRD-01SI
  • Aluminum Plastic ASA UHF RFID Reader 33dBm 200KHz Reading Distance 20m BRD-01SI

Aluminum Plastic ASA UHF RFID Reader 33dBm 200KHz Reading Distance 20m BRD-01SI

Place of Origin China
Brand Name broadradio
Model Number BRD-01SI
Product Details
Name:
UHF RFID Reader,rfid Reader,IOT RFID Reader
Size:
258mm×258mm×86mm
Shell Material:
Aluminum + Engineering Plastic ASA
Recognition Speed:
500 Times / S
Interface Communication Rate:
10M / 100M Adaptive
Working Power:
20W (output Power: 33dBm)
High Light:

rfid desktop reader

,

handheld rfid reader

Payment & Shipping Terms
Minimum Order Quantity
2pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
3-5work days
Payment Terms
T/T, PayPal
Product Description

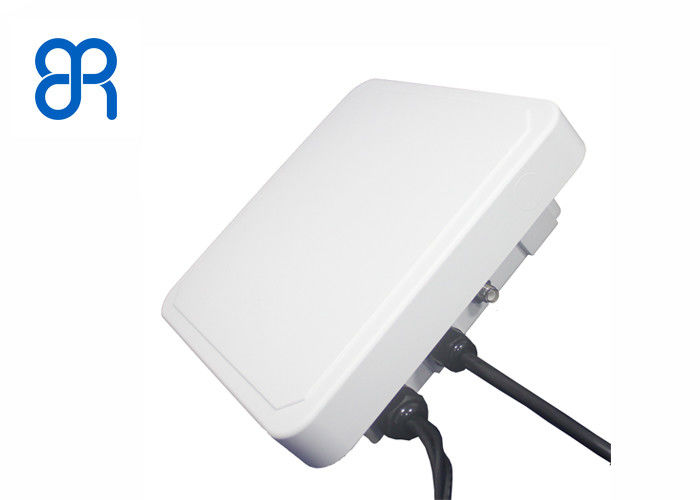

UHF RFID reader with integrated antenna and reader,reading distance 20m BRD-01SI



Product introduction


BRD-01SI is a UHF RFID reader with integrated antenna and reader. It supports the ISO18000-6C protocol. The working frequency band covers the national standard dual frequency 920MHz ~ 925MHz, 840MHz ~ 845MHz, FCC, 902MHz ~ 928MHz and ETSI. , 865MHz ~ 868MHz, output power 0dBm ~ 33dBm is optional, it has the characteristics of portability, long recognition distance, fast reading speed, high accuracy, strong anti-interference ability, excellent protection performance and convenient installation and use.


Compared with the traditional fixed reader, the reader device has obvious advantages in terms of convenience and integration efficiency, so that customers do not need to consider the coordination of the reader and the antenna. It can be widely used in many fields such as warehouse management, personnel management, asset management, commercial retail and automatic vehicle identification.





Main technical performance indicators



UHF RFID
operating system Android 4.4
agreement ISO/IEC18000-6C / EPC C1Gen2
frequency ETSI 865~868MHz, GB 840~845MHz,920~925MHz, FCC 902~928MHz
output power 33dBm(MAX)
Power regulation 1dBm
Spectrum bandwidth <200KHz
Band stability ≤±20ppm
ASWR ≤1.3:1
External interface Ethernet, RS-232, RS-485, Wigan
Working mode Fixed frequency or frequency hopping mode
RJ-45Speed of communication 10m/100m The adaptive
Read speed >500time/S
I/O interface 2 optocoupler inputs, 3 relay outputs (drive capacity: DC 30V / 2A, AC 125V / 0.75A)
Anti-interference capability Excellent anti-interference algorithm, support intensive multi-tag reading
software Support RSSI, antenna detection, online upgrade, data filtering function
antanna Built-in 9dBi circular polarization antenna
Read distance 0-20m (Depending on the label performance and label use environment)
Written to the distance 0-10m (Depending on label performance and usage environment)



Product advantages


 Adopts industry-leading high-performance radio frequency chip and built-in 9dBi circular polarization antenna, which perfectly integrates sensing and reading effects
 The reader has a high RF integration, which perfectly integrates the antenna with RFID reading and writing, minus the tedious processes in the middle, and also provides a variety of communication interfaces.
 The built-in Android system with mature applications has strong extensibility, and supports multiple development languages and SDK development kits for easy development, which facilitates project integration.
 Comply with EPC C1G2, ISO18000-6B / C, GB / T29768-2013 (optional) and other protocols; support multiple working frequency bands at the same time
 Independent mold opening, sealed and dead space-free packaging, support IP67 protection level, waterproof, dustproof, shockproof, stable operation even when exposed to harsh environments
 Adopt mature and proven dense circuit design with superior consistency, and the software intelligently monitors the operating status of the work, which can work stably for 24 hours x 365 days
