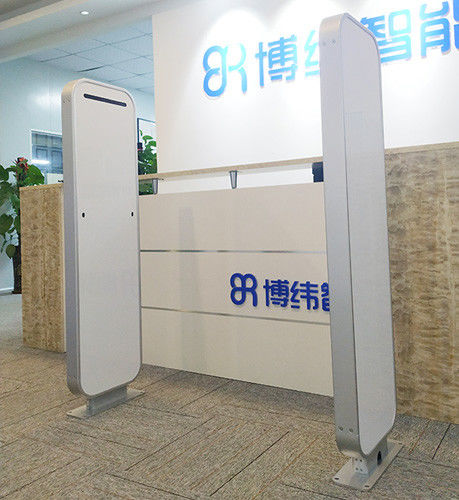

Impinj R2000 RFID Portal Reader 920~928MHz For Logistics / Warehousing / Books

Impinj R2000 RFID Portal Reader 920~928MHz For Logistics / Warehousing / Books

Impinj R2000 RFID Portal Reader 920~928MHz For Logistics / Warehousing / Books

Product Details:

Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRC-04BL

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 5-10 work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: RFID Portal Reader,rfid Access Control Frequency: 902MHz~928MHz
Size: 1370×370×77mm (per Pcs) Weight: 22KG(per Pcs)
Protocol: ISO 18000-6C Power Consumption: Approx. 45W
Interface: RS-232(DB9), RJ45 Website: Www.brrfid.com

BRA-04BL 920~928MHz Impinj R2000 RFID Portal Reader for logistics, warehousing, books,archives

The UHF channel access control system supports EPC C1 G2 (ISO18000-6C) protocol. It integrates a high-gain antenna group, a high-speed reader and control module based on ImpinjR2000. Provide standard RS232 or RJ45 interface for easy connection to software platform. The product is especially suitable for all kinds of logistics, warehousing, books, archives, staff attendance management.






Product Features

  • Independent intellectual property design
  • Support server mode to achieve multi-channel control
  • Support EPC C1 G2(ISO18000-6C)protocol
  • Frequency 902~928MHz(or customized 865~868MHz)
  • Output power 10-30dbm(adjustable)
  • Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode
  • Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot
  • Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable
  • Wider RFID safe door placing distance, maximum 2.5m
  • Motion direction judgment optional (by infrared diode pair)
  • LED display optional for showing label numbers
  • New label reading prompt function optional
  • Burglar alarm function optional
  • Fashion appearance, easy assembly



Product Specifications
Size: 1370×370×77mm (per pcs)
Weight: 22KG(per pcs)
Frequency: 920MHz~928MHz
Protocol: ISO 18000-6C
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Ambient humidity: 5%~95%RH no condensation
Power Supply: AC 220V±10% 47~63 Hz
Power Consumption: approx. 45W
Interface: RS-232(DB9),RJ45
Recommended width per channel: 0.8~1.5m(maximum 2.2m)
Access Control Components (N channels)
  • Rack N+1 pcs (N channels)
  • 9dBic narrow beam antennas 4*N pcs
  • Control panel and power module ≥N/2 pcs
  • Read-write module N pcs
  • RS232 serial port N pcs
  • Ethernet port N pcs
  • Exchange board >N ports
  • RF feeder 4*N pcs
  • Infrared radiation 2*N sets
  • Infrared connector 2*N sets
Applications
Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications.



Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.



Impinj R2000 RFID Portal Reader 920~928MHz For Logistics / Warehousing / Books
