Place of Origin | China Shenzhen |
Brand Name | broadradio |
Model Number | BRA-15 |
1) The management team of Japanese-funded enterprises guarantees order
2) Excellent performance of imported operations and test equipment to ensure accuracy
3) Efficient job management process to ensure efficiency
4) Strict quality control mechanism to ensure quality
5) Large production capacity of 13,000 square meters and 500 production staff guarantee production capacity
Impact resistance, anti-vibration, wide beam, high gain, low VSWR and etc.;
Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

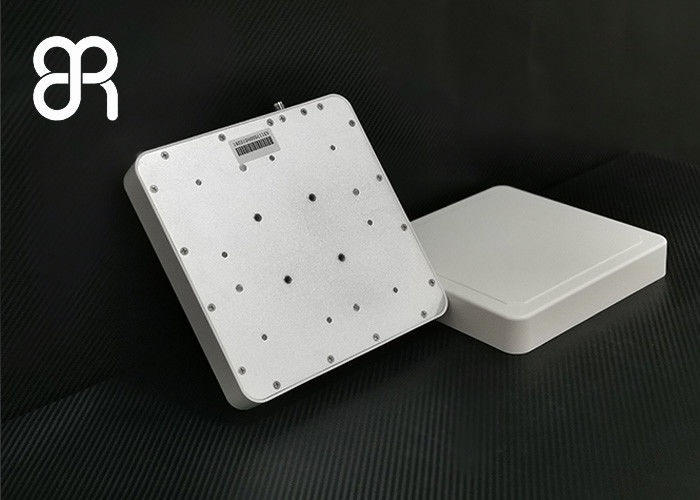

BRA-15 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Frequency Range | 902MHz~928MHz |
VSWR | ≤1.3:1 |
Gain |
>8dBic |
Beamwidth |
89°x89° |
Polarization |
Circular Polarization |
Front-to-Back Ratio |
20dB |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type |
RP-TNC Female |
Production Class | IP67 |
Antenna gain
Antenna directivity
Beamwidth
Antenna efficiency
Radiated power
Label sensitivity
Label performance
