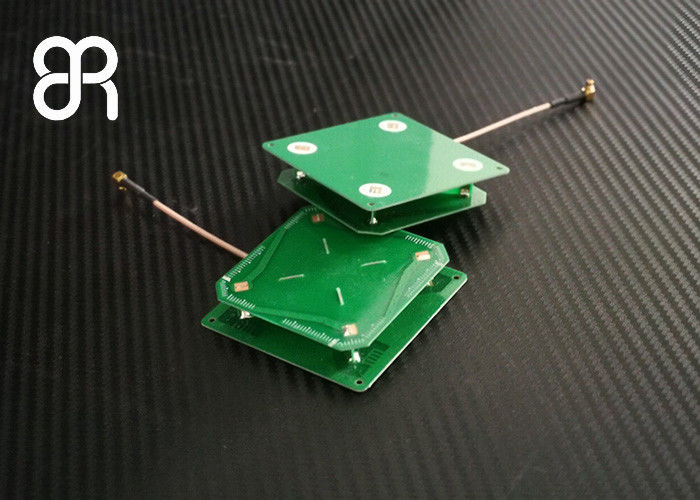

RFID Mobile Reader Small Uhf Antenna 902-928Mhz Light Weight PCB Material
  • RFID Mobile Reader Small Uhf Antenna 902-928Mhz Light Weight PCB Material
  • RFID Mobile Reader Small Uhf Antenna 902-928Mhz Light Weight PCB Material
  • RFID Mobile Reader Small Uhf Antenna 902-928Mhz Light Weight PCB Material

RFID Mobile Reader Small Uhf Antenna 902-928Mhz Light Weight PCB Material

Place of Origin China Shenzhen
Brand Name broadradio
Model Number BRA-20
Product Details
Name:
Small RFID Antenna,PCB RFID Antenna
Size:
60 Mm×60 Mm×15.6 Mm
Weight:
25g
Material:
PCB
Color:
Green
Operating Temperaturel:
-40℃~+ 85℃
Storage Temperature:
-40℃~+ 85℃
Website:
Www.brrfid.com
High Light:

rfid reader antenna

,

small uhf antenna

Payment & Shipping Terms
Minimum Order Quantity
2pcs
Price
Negotiable
Packaging Details
Plastic inner boxer and outer carton
Delivery Time
3-5work days
Payment Terms
T/T, PayPal
Product Description

BRA-20 RFID Mobile Reader With Small RFID Antenna,902-928Mhz Antenna Small Size,Light Weight





As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.

Product features

(1)Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
(2)Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.

(3)The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.



RFID Mobile Reader Small Uhf Antenna 902-928Mhz Light Weight PCB Material 0

Performance Specifications

Frequency Range

902Mhz-928Mhz(865MHz~868MHz)

VSWR ≤1.3:1
Gain ≥ 4 dBic
Radiation angle horizontal 120° × vertical 120°
Axial ratio <3dB
Polarization Circular polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type MMCX (IPX optional)



RFID team

1) 12 years focused on RFID antenna RFID engineers

2) Complete RFID and test equipment

3) Darkroom, network analyzer, label tester, comprehensive tester, etc.

4) Rich application and project experience

5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
