| Place of Origin | China shenzhen |
| Brand Name | broadradio |
| Certification | RoHS |
| Model Number | BRA-01SR |

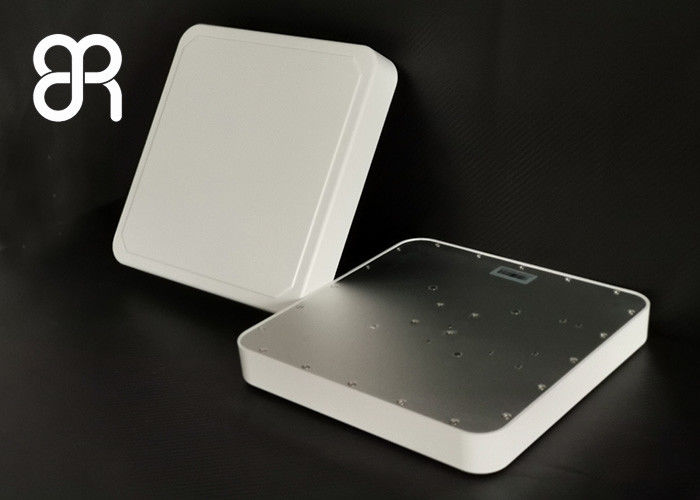

BRA-01SR 860～960MHz UHF RFID Antenna Low Profile, Excellent VSWR And Axial Ratio Parameter
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.
1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.
2)Mechanical Properties: circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.
3)Product advantage: low profile, excellent VSWR and axial ratio parameter, anti-UV aging and high protection class.
4)Product Applications:BRA-01SR Antenna is of convenient application in middle-distance parking management system, archives management, logistic management, asset management, storage management, personnel management and other IoT fields. Applications: warehouse, logistics distribution center, airport, hospital, logistics terminal, goods transfer belt, file cabinet and etc.
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 8.5 dBic |
| H side HPBW | 70° |
| E side HPBW | 70° |
| Polarization | Circular Polarization |
|
Axial ratio |
＜3 dB |
|
Front-to-Back Ratio |
≥ 15dB |
| Impedance | 50±1Ω |
| Connector Type |
RP-TNC Female |
The BRA-01SR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.
