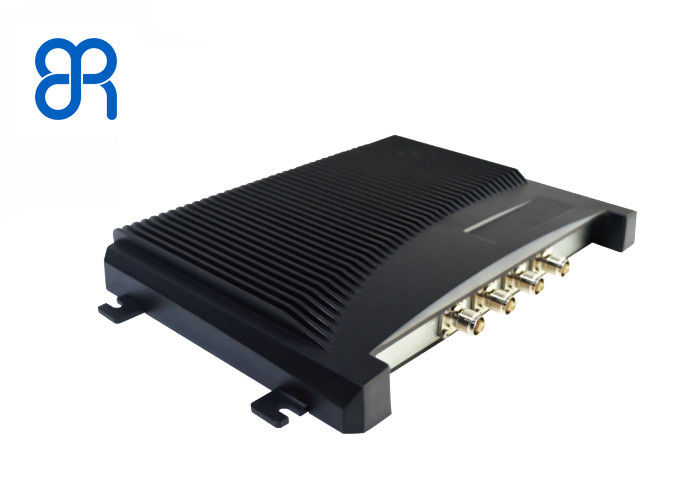

BRD-LD04 is a high-performance UHF four-port fixed RFID reading and writing device, supporting EPC global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B protocol, output power 0dBm~33dBm optional, with identification It has the characteristics of long distance, fast speed, strong multi-tag identification ability, strong anti-interference ability, high protection performance and convenient installation and use.
1, Impinj R2000 Built-in:Impinj Indy R2000 chip as RF transceiver.
2, Anti-collision Algorithm:Unique I - Search multi-tag identification algorithm providing the highest efficiency.
3, Optimized Algorithm for Tags with Small Volume:Optimized applications for small volume with better tags respond time.
4, Dual CPU Architecture:Main CPU: tag inventory; Assistant CPU: data management.Tag inventory and data transfer are parallel and simultaneous.
5, 18000-6B/6C Full Compatible:It can be switched rapidly between 18000-6B and 18000-6C tag;Read 216 bytes in one time taking less than 500ms.
6, 18000-6B Large Data Read/Write:Write 216 bytes in one time taking less than 3.5 seconds;It can read/write data with different lengths.
7, Power Output Correction:Dual modules making sure output power can be fine adjusted;Dual modules working and keeping correction unless they are both damaged.
8, Excellent Cooling Design:Heat dissipation and large cooling surface design;Thermal coupling interfaces using high-thermal conductivity solid materials which ensure stable performance under high temperature.
Dimension |
240mm(L) x 180mm(W) x 28mm(H) |
Weight |
1.2 Kg |
Body Material |
Die-cast aluminum |
Input Voltage |
DC 12V ~ 18V |
Standby Mode Current |
<80mA |
Sleep Mode Current |
<100uA |
Max Operating Current |
700mA +/-5% @ DC 12V Input |
Operating Temperature |
- 20 °C ~ + 85 °C |
Storage Temperature |
- 20 °C ~ + 85 °C |
Humidity |
5%RH - 95%RH (non -condensing) |
Interface Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B |
Spectrum Range |
902MHz – 928MHz,865MHz – 868MHz |
Supported Regions |
US, Canada and other regions following U.S. FCC |
Europe and other regions following ETSI EN 302 208 |
|
Mainland China, Taiwan, Korea, Malaysia |
|
Output Power |
0 – 33dBm |
RF Connector |
TNC/RP-TNC |
TNC/RP-TNC |
+/- 1dB |
Output Power Flatness |
+/- 0.2dB |
Receive Sensitivity |
< -85 dBm |
Peak Inventory Speed |
>700 tags/sec |
Tag Buffer Capacity |
1000 tags @ 96 bit EPC |
Tag RSSI |
Supported |
Antenna Detector |
Supported |
Ambient Temp Monitor |
Supported |
Working Mode |
Single/DRM |
Host Communication |
RS-232 or TCP/IP |
GPIO |
2 input optical coupling & 2 output coupling |
Baud Rate |
115200 bps/38400bps |
Heat Dissipation |
Air cooling |
Any discrepancy, please defer to the real product instead.
