Medium Size Linear RFID Antenna With Engineering Plastics ASA / Aluminum Material

Medium Size Linear RFID Antenna With Engineering Plastics ASA / Aluminum Material

Medium Size Linear RFID Antenna With Engineering Plastics ASA / Aluminum Material
video
Medium Size Linear RFID Antenna With Engineering Plastics ASA / Aluminum Material
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-01L
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Frequency: 902-928MHz Size: 258*258*36mm
Gain: 9dBic Name: Linear RFID Antenna
Weight: 0.91kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Website: Www.brrfid.com
High Light:

linear polarization antenna

,

long range rfid reader antenna

BRA-01L Medium size Linear RFID Antenna for access control/warehouse/logistics



Product Applications

BRA-01L Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

Product Function and Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.



Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain > 9 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Linear Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type N-50KFD (N-type female female) (single input port)



Mechanical Specifications

Size 258mm×258mm×36mm
Weight 0.91kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



Medium Size Linear RFID Antenna With Engineering Plastics ASA / Aluminum Material 0

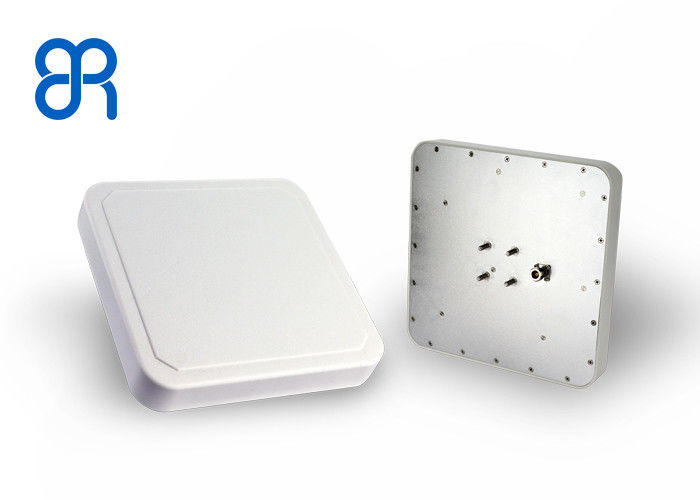

Figure 1. Antenna Photo





Mounting

Medium Size Linear RFID Antenna With Engineering Plastics ASA / Aluminum Material 1

BRA-01L Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.



application

FAQ and Cautions

BRA-01L Antenna is linear polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-01L Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
