BRA-01L Medium size Linear RFID Antenna for access control/warehouse/logistics
Product Applications
BRA-01L Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Product Function and Features
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
Performance Specifications
| Frequency Range |
902MHz～928MHz |
| VSWR |
≤1.3:1 |
| Gain |
> 9 dBic |
| H side HPBW |
70° |
| E side HPBW |
70° |
| Polarization |
Linear Polarization |
| Relative humidity |
5%～95% |
| Impedance |
50±1Ω |
| Connector Type |
N-50KFD (N-type female female) (single input port) |
Mechanical Specifications
| Size |
258mm×258mm×36mm |
| Weight |
0.91kg (bracket excluded) |
| Material |
Engineering plastics ASA, aluminum |
| Color |
Milk-white |
| Production Class |
IP67 |
| Operating Temperature |
-40℃~+ 85℃ |
| Storage Temperature |
-40℃~+ 85℃ |

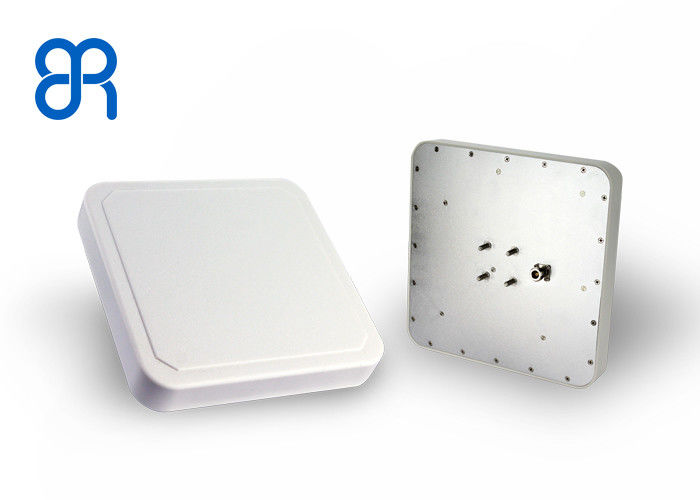

Figure 1. Antenna Photo
Mounting
BRA-01L Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is an optional accessory and customers can choose it according to actual need.
FAQ and Cautions
BRA-01L Antenna is linear polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-01L Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
