Medium Size UHF RFID Narrow Beam Antenna Anti Impact Anti Vibration

Medium Size UHF RFID Narrow Beam Antenna Anti Impact Anti Vibration

    • Medium Size UHF RFID Narrow Beam Antenna Anti Impact Anti Vibration
    • Medium Size UHF RFID Narrow Beam Antenna Anti Impact Anti Vibration
  • Medium Size UHF RFID Narrow Beam Antenna Anti Impact Anti Vibration

    Product Details:

    Place of Origin: China Shenzhen
    Brand Name: broadradio
    Model Number: BRA-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Standard Export Carton, Foam and Protective Film
    Delivery Time: 3-5works
    Payment Terms: T/T, Paypal
    Contact Now
    Detailed Product Description
    Name: Narrow Beam Antenna Frequency Range: 902MHz~928MHz
    Gain: >8dBic Polarization: Circular Polarization
    Front-to-Back Ratio: 20dB Size: 200mm×200mm×32mm
    Weight: 0.85kg (bracket Excluded) Email: Cliff.lee@broadradio.com.cn
    High Light:

    circular polarized antenna

    ,

    circular polarised antenna

    BRA-15 UHF RFID Narrow beam antenna Anti-impact anti-vibration with medium size



    Product Model

    BRA-15 Antenna

    Product Function and Features

    Impact resistance, anti-vibration, wide beam, high gain, low VSWR and etc.;

    Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

    Product Applications

    BRA-15 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



    Performance Specifications

    Frequency Range 902MHz~928MHz
    VSWR ≤1.3:1

    Gain

    >8dBic

    Beamwidth

    89°x89°

    Polarization

    Circular Polarization

    Front-to-Back Ratio

    20dB

    Relative humidity 5%~95%
    Impedance 50±1Ω
    Connector Type

    RP-TNC Female



    Mechanical Specifications

    Size 200mm×200mm×32mm
    Weight 0.85kg (bracket excluded)
    Material

    Aluminum alloy, engineering plastics ASA

    Color

    Milk-white

    Production Class IP65
    Operating Temperature -40℃~+ 85℃
    Storage Temperature -40℃~+ 85℃



    Medium Size UHF RFID Narrow Beam Antenna Anti Impact Anti Vibration 0

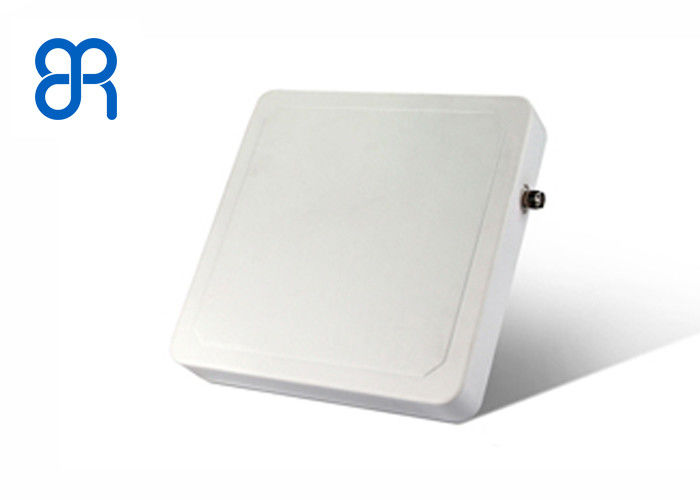

    Figure 1. Antenna Photo



    Mounting Dimensions

    BRA-15 mounting dimensions
