Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
 |
| Place of Origin: | China shenzhen |
| Brand Name: | broadradio |
| Model Number: | BRT-41 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 7-10works |
| Payment Terms: | T/T, PayPal |
| Frequency Range: | 920-925 MHz | Chip: | MPINJ Monza 4QT |
|---|---|---|---|
| Sensitivity: | -16dBm | Protocol Supported: | ISO 18000-6C, EPC Global C1Gen2 |
| Size: | 79x 31 X 10mm | Color: | Gray |
| Weight: | 12g | Name: | RFID Metal Tag |
| High Light: | anti metal tag,active rfid tag |
||

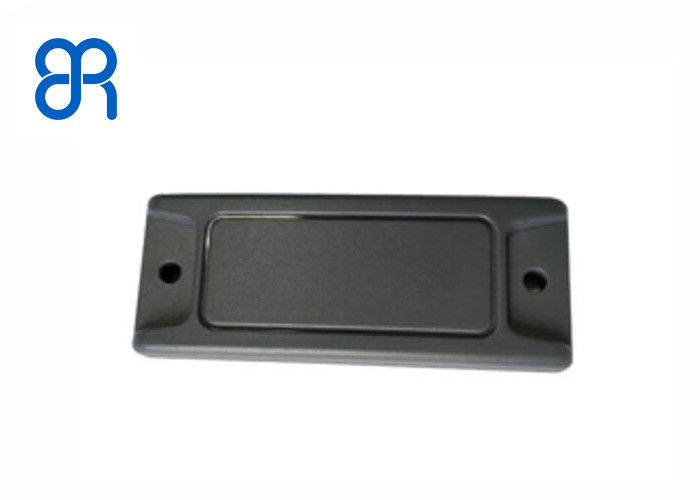

BRT-41 anti-metal tag is a label specially designed for complex environments such as metal. It has the characteristics of long reading distance, high sensitivity and excellent physical properties. It is especially suitable for various metal environments and can be easily applied to metal asset equipment management. Gun management, medical device management, logistics and other occasions, and has excellent performance on metal and non-metal.
| Performance Features | |
| Frequency range: | 920 - 925 MHz |
| Sensitivity: | -16dBm (reading range reach over 6m) |
| Chip: | IMPINJ Monza 4QT |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features | |
| E P C : | 96-EPC |
| Chip memory : | 896 User bits |
| T I D: | 64 bits |
| Access password: | 32 bits |
| Kill password: | 32 bits |
| Data retention: | 10 years |
| Write endurance: | 10,000 cycle |
| Mechanical Features | |
| Size: | 79mm x 31mm x 10mm |
| Material of shell: | High density PC |
| Color: | Gray |
| Weight: | 12g |
| Installation method : | 3M adhesive, screw mounting |
| Operating Temperature : | -40℃ to +85℃ |
| Applications | |
| Logistics, tobacco, metal shelves and metal cargo management, gun management, medical device management, etc. | |
