Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM
  • Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM
  • Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM
  • Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM

Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM

Place of Origin China shenzhen
Brand Name Broadradio
Model Number BRD-D08
Product Details
Frequency:
920MHz ~ 925MHz
Name:
Rfid Positioning System
Working Temperature:
-20 ° C ~ 60 ° C
Output Power:
30dbm (adjustable)
Size:
197×116×32.5mm
Power Supply:
AC 220V±10% 47~63 Hz
Machine Power Consumption:
About 45W
Communication Interface:
RS-232 (DB9), RJ45
High Light:

rfid positioning system

,

inventory management cabinets

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
5-8 work days
Payment Terms
T/T,PayPal
Product Description

BRD-D08 RFID intelligent positioning system Positioning accuracy up to 3cm



The BRD-D08 intelligent positioning system supports the EPC C1 G2 (ISO18000-6C) protocol. It consists of a UHF RFID reader and multiple antenna units. It can instantly read the position information of the item in the antenna partition, enabling fast and accurate inventory and Find items with a positioning accuracy of up to 3cm and a standard RS232 or RJ45 interface for easy connection to the software platform. The product is especially suitable for warehousing, books and file management.



Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM 0

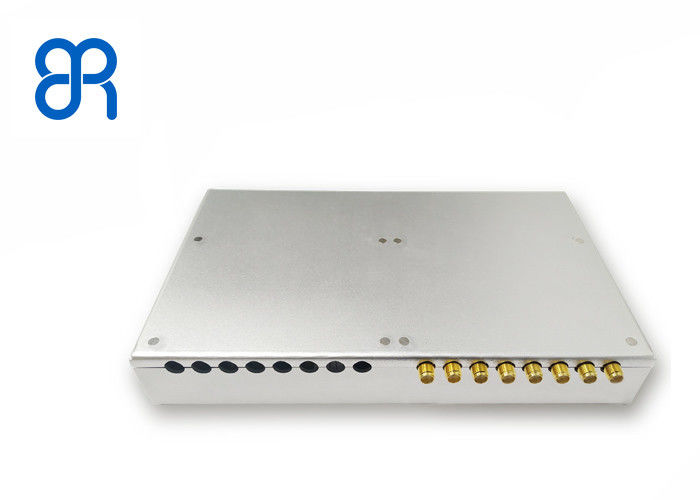

                                                 Figure 1 positioning system control box



 the special features


 Independent intellectual property design
 With Linux operating system
 Support EPC C1 G2 (ISO18000-6C) protocol
 Working frequency 920~925MHz
 Output power 30dbm (adjustable)
 Have registration, inventory, and query functions
 Large positioning capacity, a system unit can accommodate up to 256 locations
 High positioning accuracy, up to 3cm depending on application requirements
 Inventory rate is fast, inventory 256 location information time 2 minutes
 Port dwell time is freely set in units of 10ms, which can adapt to more application requirements.
 Secondary development is convenient, providing a complete API interface
 Built-in four-way optical isolation GPI, GPO port, can expand more application requirements



Product specifications

Control box size 197×116×32.5mm
Antenna size a variety of options depending on the application
Frequency 920MHz ~ 925MHz
Compliance with standards ISO 18000-6C
Working temperature  -20 ° C ~ 60 ° C
Storage temperature  -30 ° C ~ 70 ° C
Ambient humidity 5% to 95% RH, no condensation
Power supply AC 220V±10% 47~63 Hz
Machine power consumption about 45W
Communication interface RS-232 (DB9), RJ45



structure size

Intelligent RFID Smart Cabinet / RFID Positioning System Accuracy Up To 3CM 1



Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
