Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution

|
| Place of Origin: | China |
| Brand Name: | broadradio |
| Model Number: | BRT-31 |
| Minimum Order Quantity: | 10 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3-5works |
| Payment Terms: | T/T，PayPal |
| Frequency: | 902 - 928 MHz | Name: | Durable RFID Tag |
|---|---|---|---|
| Chip: | Alien H3，MonzaR6 | Function: | Read / Write |
| Size: | 60mm X 15mm X 3.6mm | Material Of Shell: | PCB, 3M Adhesive |
| Color: | Black | Email: | Cliff.lee@broadradio.com.cn |
| High Light: | anti metal tag,active rfid tag |
||

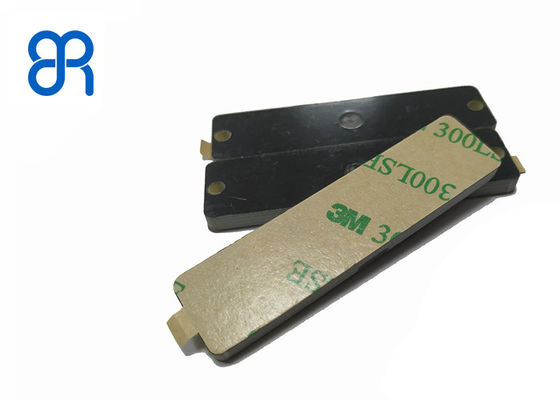

BRT-31 PCB Anti-Metal Tag is designed specifically for complex metal environments. It has the advantages of large reading distance, high sensitivity and easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.
| Performance Features | |
| Frequency range: | 865-868MHz, 902 - 928 MHz |
| Sensitivity: | -15dBm (reference distance 8M) -17dBm (reference distance 7M) |
| Chip: | Alien H3 Monza R6-p |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features | |
| E P C : | 96-EPC 128-EPC |
| Chip memory : | 512 User bits 32User bits |
| T I D: | 64 bits 48 bits |
| Access password: | 32 bits 32 bits |
| Kill password: | 32 bits 32 bits |
| Data retention: | 10 years 10 years |
| Write endurance: | 100,000 cycle 100,000 cycle |
| Mechanical Features | |
| Size: | 60mm x 15mm x 3.6mm |
| Material of shell: | PCB, 3M adhesive |
| Color: | Black |
| Weight: | 6g |
| Installation method : | 3M adhesive |
| Protection class: | IP65 |
| Operating Temperature : | -20℃ to +85℃ |
| Applications | |
| Logistics, tobacco, metal rack and metal goods management, gun control, medical equipment management and etc. | |
1) 12 years focused on RFID antenna RFID engineers
2) Complete RFID and test equipment
3) Darkroom, network analyzer, label tester, comprehensive tester, etc.
4) Rich application and project experience
5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
