Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China Shenzhen |
Brand Name: | Broadradio |
Model Number: | BRA-09 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 5-8work days |
Payment Terms: | T/T, Paypal |
Name: | Near Field RFID Antanna,Jewelry RFID Antenna | Size: | 301mm×301mm×8.5mm |
---|---|---|---|
Weight: | 500g | Material: | Aluminum, Plastics |
Color: | Black | Production Class: | IP54 |
Operating Temperature: | -30℃~+ 80℃ | Storage Temperature: | -30℃~+ 80℃ |
High Light: | RFID Near Field Antenna,15dbi Jewelry RFID antenna |

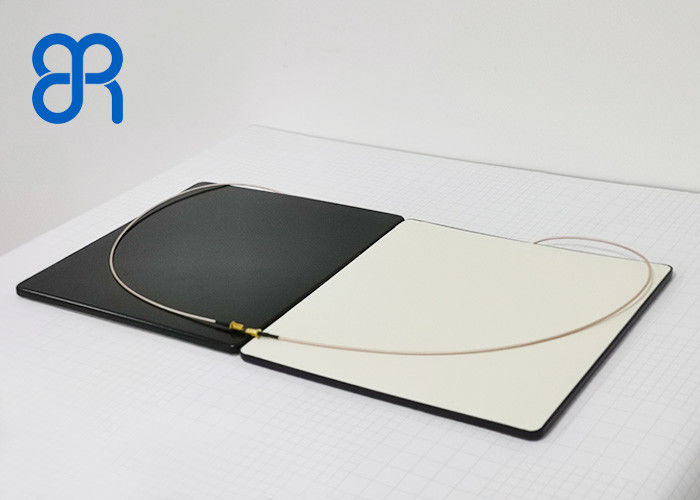

BRA-09 VSWR≤1.8:1 Oversize, Ultrathin Near Field RFID Antanna With SMA-K Connector
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.
Electrical Properties: It is UHF RFID near-field antenna for various applications fields with uniform field, no blind zone, oversize, ultrathin and etc.
Mechanical Properties: small size and suitable for various access control, vehicle management and etc.
Product Applications:BRA-09 Antenna is of convenient application in jewelry, retail POS, libraries, healthcare and other UHF RFID applications.
Frequency Range | 860MHz~960MHz |
VSWR | ≤1.8:1 |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type |
SMA-K (Customizable) |
Size | 301mm×301mm×8.5mm |
Weight | 500g |
Material |
Aluminum, plastics |
Color | Black |
Production Class | IP54 |
Operating Temperature | -30℃~+ 80℃ |
Storage Temperature | -30℃~+ 80℃ |
The electromagnetic field is only distributed on the front surface of the antenna, which is due to the special design of the near-field antenna.
The loop design of the near-field antenna makes the radiation efficiency of the antenna concentrate on the front surface of the antenna, which makes the recognition effect of multiple tags better, and the radiation angle control is better. The tags are normally recognized on the antenna surface, and they cannot be recognized when they leave. The labels on the other items on the left and right sides will not be recognized, thus achieving the true meaning of jewelry management.
Contact Person: Mr. Cliff.lee
Fax: 86-755-26651609
