Product Details:
Payment & Shipping Terms:
|
Name: | UHF RFID Antenna,external RFID Antenna | Size: | 258mm×258mm×36mm |
---|---|---|---|
Weight: | 0.8kg | Color: | Milk-white |
Material: | Engineering Plastics ASA, Aluminum | Production Class: | IP65 |
Operating Temperature: | -40℃~+ 85℃ | Email: | Cliff.lee@broadradio.com.cn |
High Light: | 8.5dBic UHF RFID Antenna,Warehouse UHF RFID Antenna,Side Connector Rfid Chip Antenna |

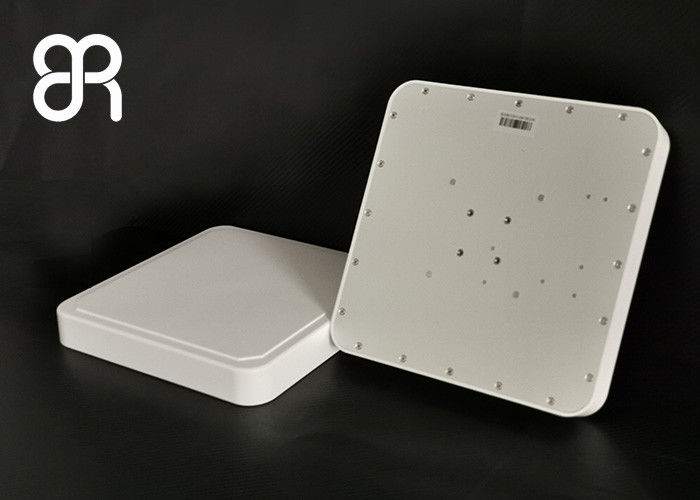

BRA-01SR Side Connector 8.5 dBic UHF RFID antenna for warehouse/logistics/airports/hospitals
1) Management team of Japanese-funded enterprises to ensure production order
2) Excellent import operation and test equipment to ensure product accuracy
3) Efficient job management process to ensure production efficiency
4) Strict quality control mechanism to ensure product quality
5) Passed ISO9001: 2018 quality management system certification
1) The antenna is used for far field applications in the UHF band
2) Side feed design, easy to install
3) Connector type is TNC external thread inner needle
4) Double waterproof design with waterproof ring and silicone, protection grade IP65
Suitable for warehouses, warehouses, logistics distribution centers, airports, hospitals, logistics and transportation terminals, goods conveyors, file filing cabinets, etc.
Frequency Range | 860MHz~960MHz |
VSWR | ≤1.3:1 |
Gain | > 8.5 dBic |
H side HPBW | 70° |
E side HPBW | 70° |
Polarization | Circular Polarization |
Axial ratio |
<3 dB |
Front-to-Back Ratio |
≥ 15dB |
Impedance | 50±1Ω |
Connector Type |
RP-TNC Female |
Connector Position |
Side |
Antenna gain
Antenna directivity
Beamwidth
Antenna efficiency
Radiated power
Label sensitivity
Label performance
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
