Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China |
Brand Name: | broadradio |
Model Number: | BRT-13 |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 5-8work days |
Payment Terms: | T/T,PayPal |
Name: | RFID Hard Tag,Ceramic Anti-Metal Tag | Size: | 40mm X 10mm X 3.5mm |
---|---|---|---|
Material Of Shell: | Ceramic, Silver, 3M Adhesive | Color: | Black |
Weight: | 5.5g | Installation Method: | 3M Adhesive |
Protection Class: | IP67 | Email: | Cliff.lee@broadradio.com.cn |

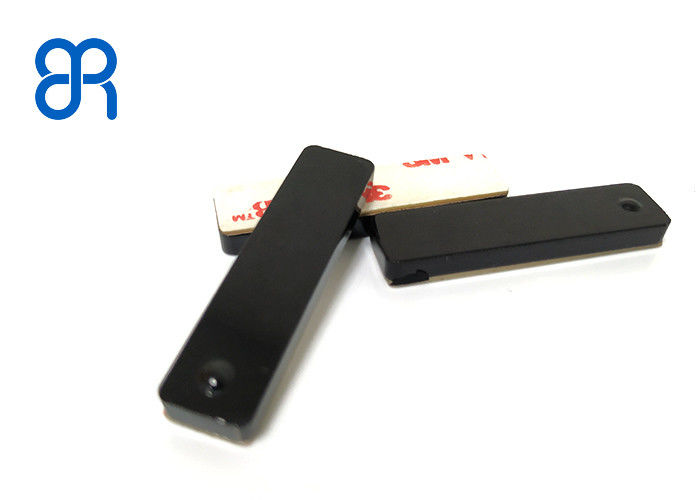

BRT-13 Ceramic Anti-Metal UHF RFID Hard Tag With High Sensitivity, Small Size, Easy To Install
1) The core technology RFID team comes from top universities and antenna companies in China.
2) RFID team has rich experience in UHF RFID antenna and label development
3) Advanced and efficient RFID platform, which can quickly respond to customized requirements and has a short development cycle
4) Successfully developed a variety of patented products including antennas, tags, access control and other integrated devices
BRT-13 Ceramic Anti-Metal Tag is designed specifically for complex metal environments. It has the advantages of large reading distance, high sensitivity, small size and easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.
Performance Features | |
Frequency range: | 920 - 925 MHz |
Sensitivity: | -17dBm (reading range reach 4m) |
Chip: | Alien H3 |
Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
Function: | Read / Write |
Chip Features | |
E P C : | 96-EPC(can be extended to 496bits) |
Chip memory : | 512 User Bits |
T I D: | 64 bits |
Access password: | 32 bits |
Kill password: | 32 bits |
Data retention: | 10 years |
Write endurance: | 10,000 cycle |
Applications | |
Logistics, tobacco, metal rack and metal goods management, gun control, medical equipment management and etc. |
1. Realize fast scanning
RFID electronic tag identification is accurate, and the identification distance is flexible. It can identify and read multiple tags at the same time. In the absence of any object coverage, the RFID tag can perform penetrating communication and unbarred reading.
2. Large data memory capacity
The maximum capacity of RFID electronic tags is MegaBytes. In the future, the amount of data and information that objects need to carry will continue to increase, and the development of data capacity of memory carriers is also expanding according to the corresponding needs of the market, and is currently in a steady upward trend. The prospects are very impressive.
3. Anti-pollution ability and durability
RFID electronic tags are highly resistant to substances such as water, oil and chemicals. In addition, RFID tags store data in the chip, so it can effectively avoid damage and data loss.
4. Can be reused
RFID electronic tags have the function of repeatedly adding, modifying, and deleting data stored in the RFID label, which facilitates the replacement and update of information.
5. Small size and diversified shapes
RFID electronic tags are not limited by shape or size, so there is no need to match paper fixation and printing quality for reading accuracy. In addition, RFID tags are also developing towards miniaturization and diversification to apply to more different products.
6. Security
The RFID electronic tag carries electronic information, and its data content is protected by a password, and the security is extremely strong. The content is not easy to be forged, altered, or stolen.
