Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67
  • Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67
  • Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67
  • Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67
  • Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67

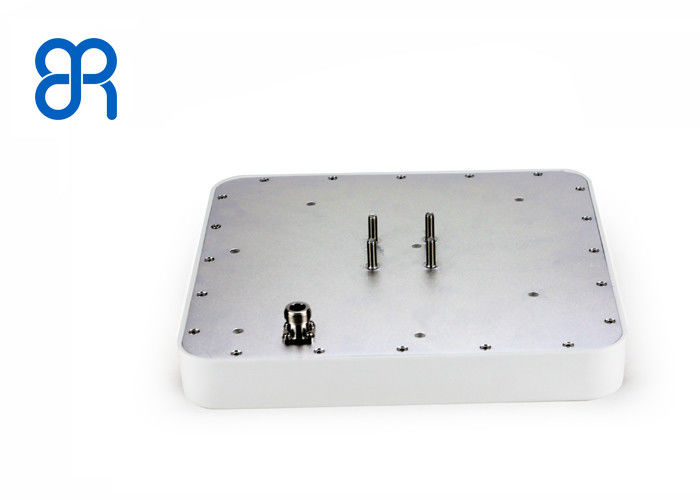

Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67

Place of Origin Shenzhen, China
Brand Name Broadradio
Model Number BRA-01CR
Product Details
Name:
UHF RFID Antenna, Long Range RFID Antenna
Size:
258mm×258mm×36mm
Weight:
0.91kg (bracket Excluded)
Material:
Engineering Plastics ASA, Aluminum
Color:
Milk-white
Production Class:
IP67
Operating Temperature:
Operating Temperature
Storage Temperature:
Operating Temperature
High Light:

Long Range Directional Wifi Antenna

,

928MHz Directional Wifi Antenna

Payment & Shipping Terms
Minimum Order Quantity
2pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
2-5 work days
Payment Terms
T/T, PayPal
Product Description

BRA-01CR 9dBic UHF Long Range RFID Antenna,Connector Type N Female VSWR≤1.3:1





Broadradio specializes in R&D, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.



Product Features

1) It is a general antenna for UHF RFID applications with high gain and low VSWR.

2) pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

3)BRA-01CR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



Long Range High Gain Directional Antenna Circular Polarization 902-928MHz IP67 0



Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 9 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type N Female



core advantages

1) The core technology R&D team comes from top universities and antenna companies in China.

2) R&D team has rich experience in UHF RFID antenna and label development

3) Advanced and efficient R&D platform, which can quickly respond to customized requirements and has a short development cycle

4) Successfully developed a variety of patented products including antennas, tags, access control and other integrated devices



installation

The BRA-01CR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.

The antenna mount is an option and the customer can choose as needed.
