Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China shenzhen |
Brand Name: | Broadradio |
Model Number: | BRT-34 |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 10-20works |
Payment Terms: | T/T,PayPal |
Frequency: | 920 - 925 MHz | Chip: | Impinj Monza R6-P |
---|---|---|---|
Protocol Supported: | ISO 18000-6C, EPC Global C1Gen2 | Size: | 48mm X 38mm X 10mm |
Name: | RFID Hard Tag | Color: | Black |
Weight: | 10g | Website: | Www.brrfid.com |
High Light: | high temperature uhf rfid tags,anti metal rfid tag |

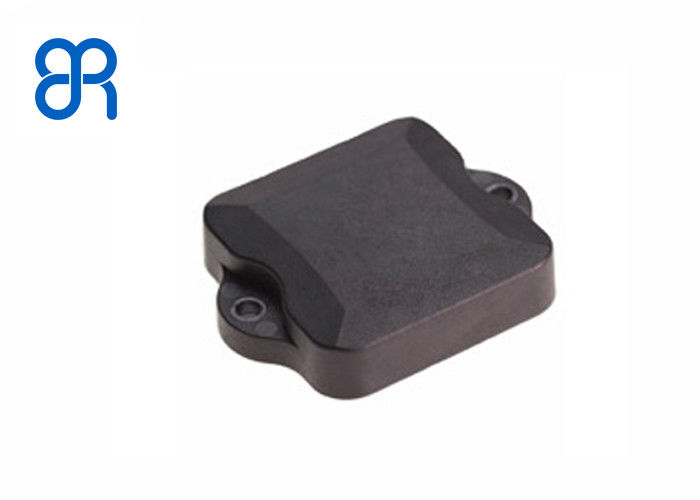

BRT-34 High Temperature RFID Hard Tag Long Reading Distance Protection Class IP67
BRT-34 is a label specially designed for complex and high temperature environments such as metals. It has the characteristics of long reading distance, high sensitivity and easy installation. It is suitable for various metal environments, especially high temperature environments, and can be conveniently applied to various metal and high temperature environments.
Performance Features | |
Frequency range: | 902 - 928 MHz |
Sensitivity: | -17dBm |
Chip: | Monza R6-P |
Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
Function: | Read / Write |
Chip Features Monza R6-P | |
E P C : | 128-EPC |
Chip memory : | 32User bits |
T I D: | 48 bits |
Access password: | 32 bits |
Kill password: | 32 bits |
Data retention: | 10 years |
Write endurance: | 100,000 cycle |
Mechanical Features | |
Size: | 48mm x 38mm x 10mm |
Material of shell: | High Temperature Resistant Materials |
Color: | Black |
Weight: | 10g |
Installation method : | Screw/3M adhesive |
Protection class: | IP68 |
Operating Temperature : | -40℃ to +250℃ |
Applications | |
Suitable for all kinds of metal environment, especially high temperature environment. |
1) The management team of Japanese-funded enterprises guarantees order
2) Excellent performance of imported operations and test equipment to ensure accuracy
3) Efficient job management process to ensure efficiency
4) Strict quality control mechanism to ensure quality
5) Large production capacity of 13,000 square meters and 500 production staff guarantee production capacity
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.
