|Place of Origin:||China Shenzhen|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Standard Export Carton, Foam and Protective Film|
|Delivery Time:||2-5 work days|
|Payment Terms:||T/T, Paypal|
|Weight:||0.91kg (bracket Excluded)||Material:||Engineering Plastics ASA, Aluminum|
|Color:||Milk-white||Name:||High Gain RFID Antenna|
uhf rfid integrated reader,
uhf rfid reader antenna
BRA-01CR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
|Gain||> 9 dBic|
|H side HPBW||70°|
|E side HPBW||70°|
|Connector Type||N Female|
|Weight||0.91kg (bracket excluded)|
|Material||Engineering plastics ASA, aluminum|
|Operating Temperature||-40℃~+ 85℃|
|Storage Temperature||-40℃~+ 85℃|

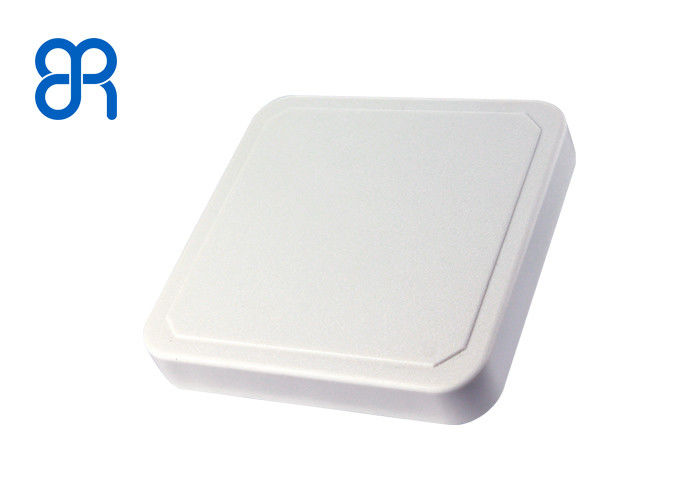

Figure 1. Antenna Photo
BRA-01CR Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is an optional accessory and customers can choose it according to actual need.
BRA-01CR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-01CR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
Contact Person: Mr. Cliff.lee
