860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67

860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67

860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67
video
860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67
Product Details:
Place of Origin: China shenzhen
Brand Name: broadradio
Model Number: BRA-02
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 2-5work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: UHF RFID Antenna,6dBic Antenna Size: 128*128*20mm
Gain: 6dBic Polarization: Circular Polarization
Weight: 0.3kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Email: Cliff.lee@broadradio.com.cn
High Light:

rfid desktop reader

,

uhf rfid reader antenna

BRA-02 860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67



Product Function and Features

1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

3)BRA-02 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 6 dBic
H side HPBW 90°
E side HPBW 90°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA-50KFD Female



Mechanical Specifications

Size 128mm×128mm×20mm
Weight 0.3kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67 0

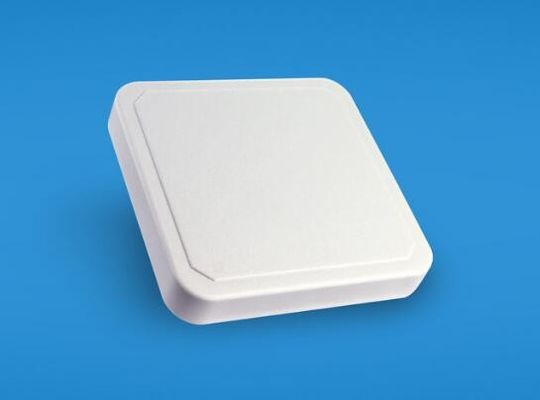

Figure 1. Antenna Photo



FAQ and Cautions

BRA-02 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-02 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.



Antenna pattern



860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67 1
