| Place of Origin: | China Shenzhen |
| Brand Name: | broadradio |
| Model Number: | BRA-01DL |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T，PayPal |
| Frequency: | 902-928MHz | Size: | 258*258*36mm |
|---|---|---|---|
| Gain: | 9dBic | Polarization: | Cross Polarized |
| Weight: | 0.91kg (bracket Excluded) | Material: | Engineering Plastics ASA, Aluminum |
| Color: | Milk-white | Name: | UHF RFID Reader Antenna |
| High Light: | uhf rfid integrated reader,uhf rfid reader antenna |
||
BRA-01DL Antenna
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
It has the dual advantages of the far reading distance in the linear polarization antenna and the non-directional feature in the circular polarization antenna.
Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
BRA-01DL Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
| Frequency Range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
| Gain | > 9 dBic |
| H side HPBW | 70° |
| E side HPBW | 70° |
| Polarization | Cross polarized (double polarized) |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
N Female (2 Input Port) |
| Size | 258mm×258mm×36mm |
| Weight | 0.91kg (bracket excluded) |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP67 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

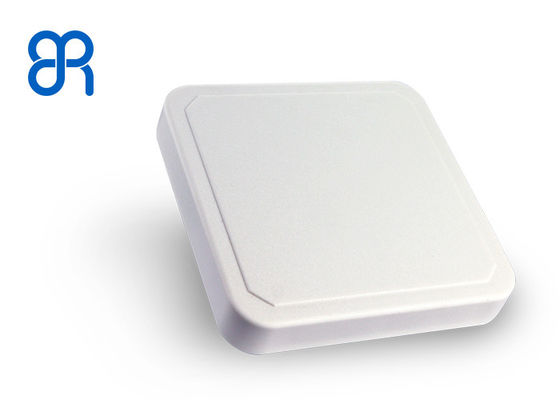

Figure 1. Antenna Photo
BRA-01DL Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is an optional accessory and customers can choose it according to actual need.
BRA-01DL Antenna is double-linear polarized antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-01DL Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
