Product Features
Electrical Properties: It is a general antenna for UHF RFID applications with high gain, narrow beam and low VSWR.
Mechanical Properties: The compact and artistic antenna is suitable for all kinds of severe environment for strengthening rib of shell.
Main Applications
BRA-49 is suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and vehicle management.
Frequency Range | 902~928MHz/ 865~868MHz |
VSWR | ≤1.3:1 |
Gain | 12 dBic |
Beamwidth |
30°/75° |
Polarization | Linear Polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type |
N-Female |
Size | 582mm×202mm×55.5mm |
Weight | 2.5kg |
Material |
Engineering Plastic ASA,Aluminums |
Color | white |
Operating Temperature | -40℃~+ 85℃ |
Storage Temperature | -40℃~+ 85℃ |

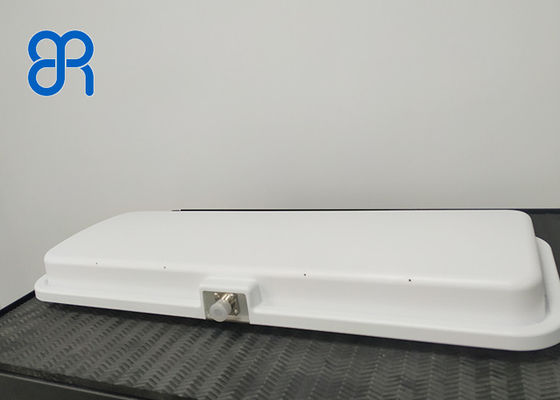

Figure 1. Antenna Photo
The BRA-49 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.
3D Radiation Pattern
