UHF RFID Antenna
>
|
|
| Place of Origin | China Shenzhen |
| Brand Name | Bowei |
| Model Number | BRA-50 |
BRA-50
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties: The compact and artistic antenna is suitable for all kinds of severe environment for its dual waterproof design with Gasket and silicone and strengthening rib of shell.
BRA-50 antenna is retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management
| Frequency Range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
|
Gain |
>8dBic |
|
Beamwidth |
75º x 75º |
|
Polarization |
Circular Polarization |
|
Axial ratio |
<3 dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
SMA-Female |
| Size | 190 mm×190 mm×18.6 mm |
| Weight | 0.73kg (bracket excluded) |
| Material |
FRP,Aluminum |
| Color |
Milk-white |
| Production Class | IP65 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

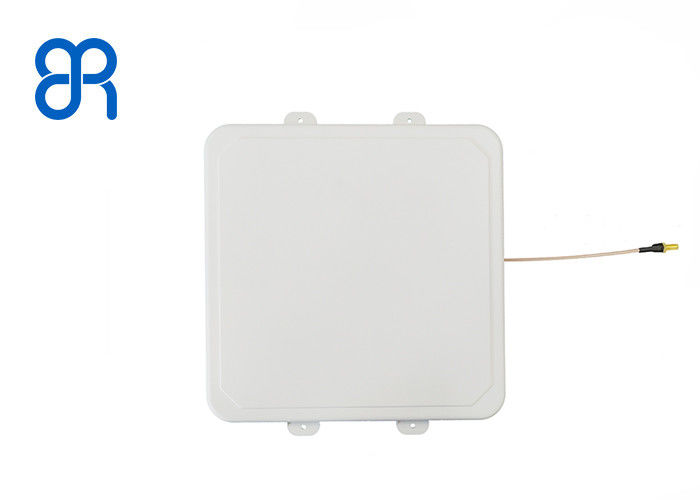

Figure 1. Antenna Photo
1) Foxconn for Apple Project Asset Management
2) Oil Drilling Materials Asset Warehouse
3) Some unmanned self-service store
4) A library intelligent optimization solution
5) A brand apparel retail storage management plan
Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
