Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Product Details:
Payment & Shipping Terms:
|
Name: | UHF RFID Antenna, Linear Polarization Antenna | Frequency Range: | 902MHz~928MHz |
---|---|---|---|
VSWR: | ≤1.3:1 | Gain: | 12 DBi |
Polarization: | Linear Polarization | H Side HPBW: | 40° |
E Side HPBW: | 90° | Impedance: | 50±1Ω |
High Light: | long range uhf rfid antenna,long distance rfid antenna |

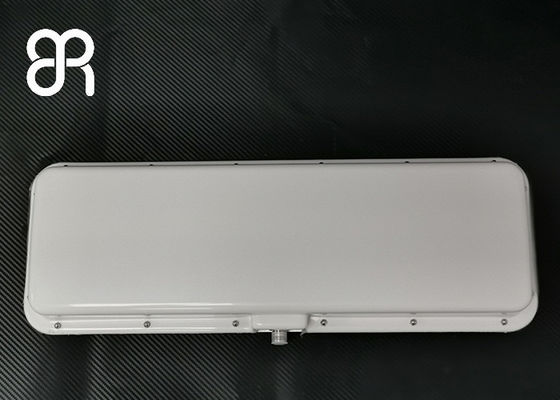

BRA-44 Reading distance 15-20m UHF Long Range RFID Antenna,Gain 12dBi Linear Polarization
Broadradio implements the global business strategy, strengthens the development of the international market, increases interaction with customers and suppliers, responds to customer needs quickly and comprehensively, and establishes a more stable long-term partnership. At the same time, Broadradio implements forward-looking and characteristic solutions based on local conditions, and promotes Broadcom's intelligent products and services to be widely used in all walks of life, providing global users and partners with an overall RFID that keeps pace with the times. )solution.
1)Electrical performance: It is a general-purpose antenna suitable for UHF band RFID applications with high gain and narrow beam.
2)Mechanical properties: suitable for a variety of harsh environments.
3)The BRA-44 antenna can be easily applied to applications such as vehicle management and asset management in the UHF band.
Size | 586mm×206mm×57mm |
Weight | 1.61kg |
Material | ABS+ aluminum parts |
Color | white |
Production Class | IP65 |
Operating Temperature | -40℃~+ 85℃ |
Storage Temperature | -40℃~+ 85℃ |
Connector Type | N Female |
1) 12 years focused on RFID antenna RFID engineers
2) Complete RFID and test equipment
3) Darkroom, network analyzer, label tester, comprehensive tester, etc.
4) Rich application and project experience
5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
