Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-06 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3-5 work days |
Payment Terms: | T/T, PayPal |
Name: | UHF RFID Antenna, Linear Polarization Antenna | Frequency Range: | 860MHz~960MHz |
---|---|---|---|
VSWR: | ≤1.3:1 | Gain: | 8dBic |
Polarization: | Circular Polarization | H Side HPBW: | 102° |
E Side HPBW: | 102° | Impedance: | 50±1Ω |
High Light: | long range uhf rfid antenna,long distance rfid antenna |

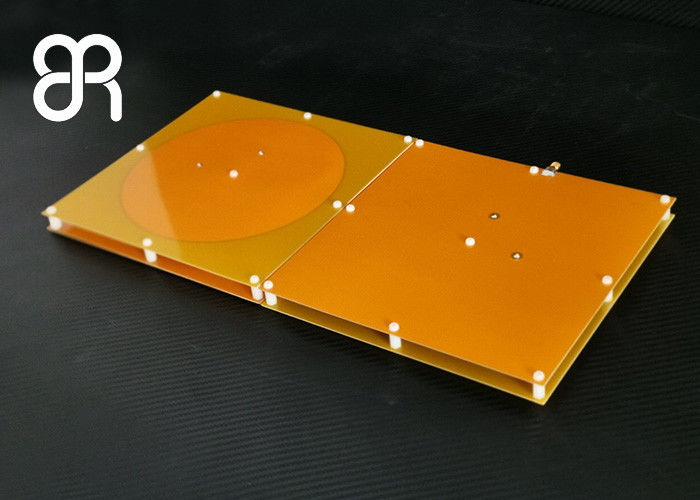

BRA-06 860~960MHz Gain 6dBic RFID Antenna,SMA Male (Customizable) Long Range RFID Antenna
1) 12 years focused on RFID antenna RFID engineers
2) Complete RFID and test equipment
3) Darkroom, network analyzer, label tester, comprehensive tester, etc.
4) Rich application and project experience
5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
1)It is a general antenna with high gain, low VSWR, wide AR band and etc.
2) ltra-thin design, sophisticated techniques, easy to install, it fits all the domestic and foreign model UHF readers and brings the best performance of the reader.
3)BRA-06 Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.
Size | 190mm×190mm×18.6mm |
Weight | 0.73kg |
Material | Plastics, aluminum, FR4 |
Color | Luxury gold or Green |
Production Class | IP54 |
Operating Temperature | -40℃~+ 85℃ |
Storage Temperature | -40℃~+ 85℃ |
Connector Type | SMA Male (Customizable) |
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
