Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-01DL |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 5-10 work days |
Payment Terms: | T/T, PayPal |
Name: | UHF RFID Antenna,Linear Polarization Antenna | Size: | 258mm×258mm×36mm |
---|---|---|---|
Weight: | 0.91kg (bracket Excluded) | Material: | Engineering Plastics ASA, Aluminum |
Production Class: | IP67 | Operating Temperature: | -40℃~+ 85℃ |
High Light: | rfid desktop reader,uhf rfid reader antenna |

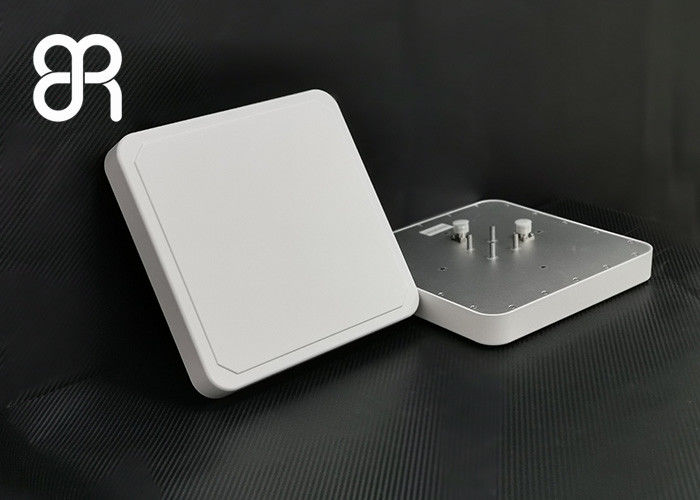

BRA-01DL 9dBi Linear polarization UHF RFID Antenna,Connector Type N Female (two inputs)
Broadradio specializes in R&D, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
2)It has the dual advantages of the far reading distance in the linear polarization antenna and the non-directional feature in the circular polarization antenna.
3)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
4)BRA-01DL Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Frequency Range | 902MHz~928MHz |
VSWR | ≤1.3:1 |
Gain | > 9 dBic |
H side HPBW | 70° |
E side HPBW | 70° |
Polarization | Linear Polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | N Female (two inputs) |
1) 12 years focused on RFID antenna R&D engineers
2) Complete R&D and test equipment
3) Darkroom, network analyzer, label tester, comprehensive tester, etc.
4) Rich application and project experience
5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
Host: BRA-01DL antenna
Accessories: L plate (mounting bracket), dog teeth, M6 U-bolt, M6 nut, spring washer, flat washer
