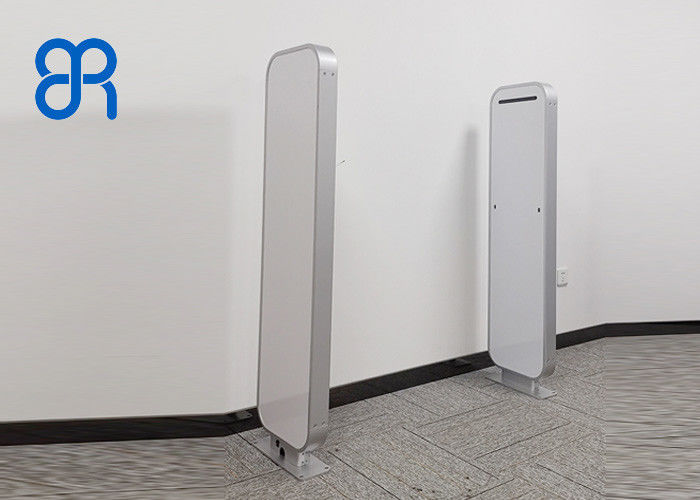

AC 220V UHF RFID Channel Device BRC-04BL Support EAS Security Alarm For Illegal Labels
  • AC 220V UHF RFID Channel Device BRC-04BL Support EAS Security Alarm For Illegal Labels
  • AC 220V UHF RFID Channel Device BRC-04BL Support EAS Security Alarm For Illegal Labels

AC 220V UHF RFID Channel Device BRC-04BL Support EAS Security Alarm For Illegal Labels

Place of Origin China
Brand Name broadradio
Model Number BRC-04BL
Product Details
RFID Portal Reader,RFID Channel Device
EPC C1 G2(ISO18000-6C)
1370×370×77mm (per Pcs)
13KG(per Pcs)
Power Supply:
AC 220V±10% 47~63 Hz
Logistics, Warehouse, Library, Archives And Personnel Work Attendance Applications.
High Light:

rfid gate reader


uhf rfid gate reader

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
Payment Terms
T/T, PayPal
Product Description

BRC-04BL UHF RFID UHF channel device support EAS security,alarm for illegal labels


BRC-04BL access control is a high-performance RFID UHF channel device that supports fast anti-collision analysis of ISO18000-6C protocol electronic tags. Adopting the horizontal plane narrow beam antenna scheme, the access control identification coverage area is more accurate, and there are no blind spots. The built-in 2-channel infrared motion sensor supports the detection of the direction of entry and exit of people and the counting of the number of people. It supports the EAS security detection function, supports multi-channel unlimited cascading, supports RS232 and TCP / IP network interfaces, and enables remote centralized configuration and management of channel equipment. Support both offline and online alarm modes. Equipped with alarm buzzer module, and sound and light alarm for illegal labels. The channel width can support 0.8m-4m.




Product Features
  • Independent intellectual property design
  • Support server mode to achieve multi-channel control
  • Support EPC C1 G2(ISO18000-6C)protocol
  • Frequency 902~928MHz(or customized 865~868MHz)
  • Output power 30dbm(adjustable)
  • Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode
  • Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot
  • Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable
  • Wider RFID safe door placing distance, maximum 2.2m
  • Motion direction judgment optional (by infrared diode pair)
  • LED display optional for showing label numbers
  • New label reading prompt function optional
  • Burglar alarm function optional
  • Fashion appearance, easy assembly
Product Specifications
Size: 1370×370×77mm (per pcs)
Weight: 22KG(per pcs)
Frequency: 920MHz~928MHz
Protocol: ISO 18000-6C
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Ambient humidity: 5%~95%RH no condensation
Power Supply: AC 220V±10% 47~63 Hz
Power Consumption: approx. 45W
Interface: RS-232(DB9),RJ45
Recommended width per channel: 0.8~1.5m(maximum 2.2m)
Access Control Components (N channels)
  • Rack N+1 pcs (N channels)
  • 9dBic narrow beam antennas 4*N pcs
  • Control panel and power module ≥N/2 pcs
  • Read-write module N pcs
  • RS232 serial port N pcs
  • Ethernet port N pcs
  • Exchange board >N ports
  • RF feeder 4*N pcs
  • Infrared radiation 2*N sets
  • Infrared connector 2*N sets
Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications.
