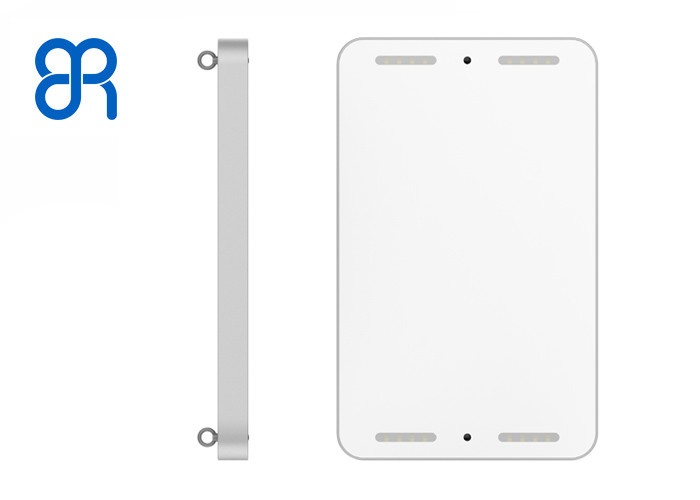

RFID Top-Mounted Portal Use 14dBi RFID Antenna,Automatic Direction Detection

RFID Top-Mounted Portal Use 14dBi RFID Antenna,Automatic Direction Detection

  • RFID Top-Mounted Portal  Use 14dBi RFID Antenna,Automatic Direction Detection
  • RFID Top-Mounted Portal  Use 14dBi RFID Antenna,Automatic Direction Detection
  • RFID Top-Mounted Portal  Use 14dBi RFID Antenna,Automatic Direction Detection
RFID Top-Mounted Portal  Use 14dBi RFID Antenna,Automatic Direction Detection
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRD-17
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5works
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Name: UHF Top-mounted Smart Device,RFID Portal Size: 550mm*340mm*40mm
Weight: 4.0kg Protocol: ISO18000-6C
Beam Scanning Range: Channel Length 8m / Width 3m Operating Mode: Fixed Frequency/frequency Hopping Optional
Read Rate: >200 Reads/s IP Level: IP53

BRD-17 UHF RFID Top-Mounted Portal Use 14dBi RFID Antenna,Automatic Direction Detection



Introduction

BRD-17 portal is a high-performance UHF top-mounted smart device. It complies with ISO18000-6C protocol. The working frequency band covers 902MHz~928MHz (FCC). A built-in phase-controlled high-gain antenna array is inside. It has the characteristics of fast and accurate positioning, automatic identification of moving direction, contact-less triggering, long recognition distance, strong multi-label recognition ability, strong anti-interference ability, good scalability, and easy installation etc. BRD-17 can be widely used in clothing stores, supermarket retail, book file management, personnel access management, fixed asset management, intelligent warehousing management.



Features:

Automatic direction detection: can automatically detect the direction of label travel, without the need for peripheral sensing equipment;

Antenna control field accuracy: professional antenna design, accurate angle control, accurate field control coverage area, no blind spots, top-mounted height of 3-5 meters, coverage diameter of 2.5-4.5 meters;

Remote equipment monitoring: support remote equipment management and maintenance, remote control of functions such as online upgrade, on-off monitoring, status viewing, parameter configuration, etc., greatly reducing project maintenance costs;

Event monitoring and alarm: It supports sound and light alarms of various combined events, and supports both online and offline alarms, with volume control optional.

Expanded integration: supports multi-channel GPIO port input and output, and can integrate and link peripheral devices according to application scenarios;

Powerful customization service: built-in Linux 4.1.15 operating system and middleware, which is convenient for customized development of customer applications;

Easy installation: It supports both ceiling and ceiling installation, which is fast and convenient and greatly reduces the cost of equipment installation;

Easy to use: The concealed installation method can greatly improve the space utilization rate in various scenarios, and at the same time reduce the psychological abruptness of personnel use.



Specifications:

Electrical
Protocol ISO18000-6C
Operating mode Fixed frequency/frequency hopping optional
GPIO 2 out / 2 in
Frequency Range 902MHz~928MHz
Transmit Power 30dBm±1dB(MAX)
Antenna Gain ≧14dBi
Polarization Circular
Beam scanning range Channel length 8m / width 3m
Read Rate >200 reads/s
Network 10M /100M Ethernet
Power Supply DC12V5A
OS Linux 4.1.15
Physical
Dimensions 550mm*340mm*40mm
weight 4.0kg
Material aluminum,acrylic
Environmental
Operating Temperature -20 - +60℃
Storage Temperature -40 - +85℃
Humidity 10%-95% non-condensing
IP Level IP53


Dimensions :

RFID Top-Mounted Portal  Use 14dBi RFID Antenna,Automatic Direction Detection 0
