902-928MHz UHF RFID Top Mounted Portal With Positioning Function, Clothing Retail Industry RFID Gate System

Place of Origin Shenzhen, China
Brand Name Broadradio
Model Number BRD-17
Product Details
Name:
RFID Portal Reader, Top-mounted Portal
Frequency:
902MHz~928MHz
Size:
550mm*340mm*40mm
Weight:
4.0kg
Antenna Gain:
≧14dBi
Read Rate:
>200 Reads/s
Material:
Aluminum, Acrylic
OS:
Linux 4.1.15
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
3-5works
Payment Terms
T/T, PayPal
Product Description

BRD-17 UHF RFID Top-Mounted Portal,A High-Performance UHF Top-Mounted Smart Device



Introduction

BRD-17 portal is a high-performance UHF top-mounted smart device. It complies with ISO18000-6C protocol. The working frequency band covers 902MHz~928MHz (FCC). A built-in phase-controlled high-gain antenna array is inside. It has the characteristics of fast and accurate positioning, automatic identification of moving direction, contact-less triggering, long recognition distance, strong multi-label recognition ability, strong anti-interference ability, good scalability, and easy installation etc. BRD-17 can be widely used in clothing stores, supermarket retail, book file management, personnel access management, fixed asset management, intelligent warehousing management.

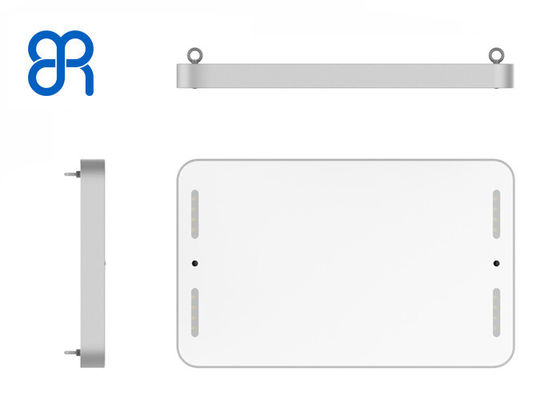

902-928MHz UHF RFID Top Mounted Portal With Positioning Function, Clothing Retail Industry RFID Gate System 0







Electrical

Protocol

ISO18000-6C

Operating mode

Fixed frequency/frequency hopping optional

GPIO

2 out / 2 in

Frequency Range

902MHz~928MHz

Transmit Power

30dBm±1dB(MAX)

Antenna Gain

≧14dBi

Polarization

Circular

Beam scanning range

Channel length 8m / width 3m

Read Rate

>200 reads/s

Network

10M /100M Ethernet

Power Supply

DC12V5A

OS

Linux 4.1.15

Physical

Dimensions

550mm*340mm*40mm

weight

4.0kg

Material

aluminum,acrylic

Environmental

Operating Temperature

-20 - +60℃

Storage Temperature

-40 - +85℃

Humidity

10%-95% non-condensing

IP Level

IP53
