Long Range RFID Antenna
>
|
|
| Place of Origin | China Shenzhen |
| Brand Name | broadradio |
| Model Number | BRA-01CR |

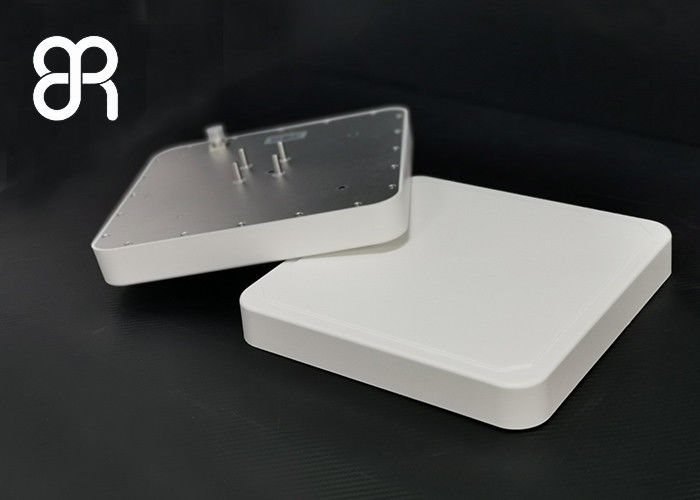

BRA-01CR Circular Polarization Long Range RFID Antenna, with high gain, low standing wave characteristics
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
BRA-01CR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 9 dBic |
| H side HPBW | 70° |
| E side HPBW | 70° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | N Female |
| Size | 258mm×258mm×36mm |
| Weight | 0.91kg (bracket excluded) |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP67 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |
BRA-01CR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-01CR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
