Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution

|
| Place of Origin: | China |
| Brand Name: | broadradio |
| Model Number: | BRT-08 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 5-8works |
| Payment Terms: | T/T，PayPal |
| Name: | RFID Hard Tag，PCB Anti-Metal Tag | Size: | 90mm X 11mm X 3mm |
|---|---|---|---|
| Material Of Shell: | FR4 | Color: | Black |
| Weight: | 6g | Installation Method: | 3M Adhesive |
| Protection Class: | IP65 | ||
| High Light: | fr4 shell rfid sticker tags,3M adhesive rfid label tag |
||
1) 10 years experience in hardware design such as RFID antennas and tags
2) More than 20 industry high specification configuration test equipment
3) Obtained a number of national patents and PCT international patents
4) Master the technology of distributed reverberator feed design, multi-input and multi-out phase control network;

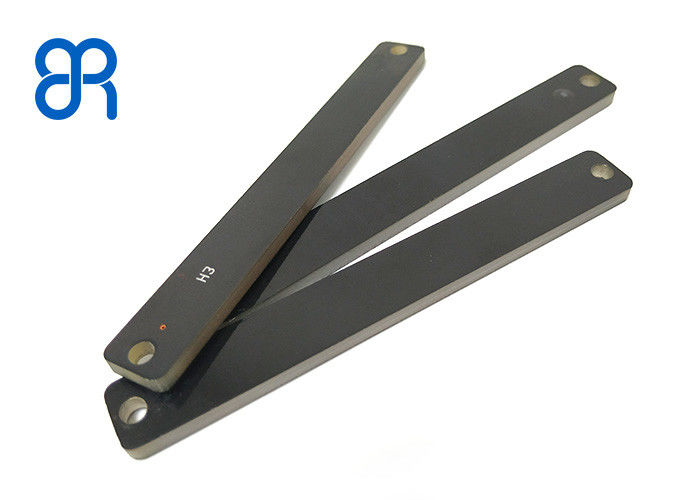

BRT-08 PCB Anti-Metal Tag is designed specifically for complex metal environments. It has the advantages of large reading distance, high sensitivity and easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.
| Performance Features | |
| Frequency range: | 920 - 925 MHz |
| Sensitivity: | -15dBm (reading range reach over 8m) |
| Chip: | Alien H3 Monza R6 |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features | |
| Alien H3 Monza R6 | |
| E P C : | 96-EPC 96-EPC |
| Chip memory : | 512 User Bits Non |
| T I D: | 64 bits 96 bits |
| Access password: | 32 bits Non |
| Kill password: | 32 bits Non |
| Data retention: | 10 years 10 years |
| Write endurance: | 100,000 cycle 100,000 cycle |
| Applications | |
| Logistics, tobacco, metal rack and metal goods management, gun control, medical equipment management and etc. | |
Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
Contact Person: Mr. Cliff.lee
Tel: +86 137 2186 9531
Fax: 86-755-26651609
