Place of Origin: | China shenzhen |
Brand Name: | broadradio |
Model Number: | BRT-02 |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3-5 work days |
Payment Terms: | T/T,PayPal |

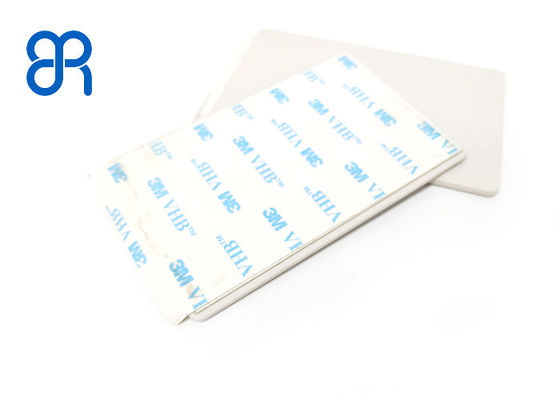

Name: | RFID Hard Tag,vehicle Anti-disassemble Tag | Size: | 86mm X 54mm X 2.5mm |
---|---|---|---|
Material Of Shell: | Ceramic, Silver, 3M Adhesive, PC | Color: | White |
Weight: | 5g | Installation Method: | 3M Adhesive |
Protection Class: | IP67 | Email: | Cliff.lee@broadradio.com.cn |
High Light: | 10m Vehicle Anti Disassemble Tag,3M Adhesive RFID Tag |
When the vehicle enters the communication area of the antenna on the lane through the bridge lane, the RFID electronic tag installed in the vehicle immediately records the vehicle information, driving information, etc., and sends it to the antenna on the lane. After receiving the information, the RFID lane antenna sends it to the lane controller for monitoring through the protocol. After the information is processed by the lane controller, then the current driving record information is poured to the antenna on the lane, and finally written into the car electronic label. In this way, each station can use the obtained driving record of the vehicle to calculate the cost of the accounts receivable, and then automatically charge the bank account of the owner of the vehicle through the network.
BRT-02 vehicle anti-disassemble tag is designed specifically for the vehicle identification, with large reading distance, high sensitivity, excellent physical characteristics. Easy to use in vehicle management and etc.
Performance Features | |
Frequency range: | 860 - 960 MHz |
Sensitivity: | -17dBm (reading range reach over 10m) |
Chip: | Alien H3 |
Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
Function: | Read / Write |
Chip Features | |
E P C : | 96-EPC(can be extended to 496bits) |
Chip memory : | 512 User bits |
T I D: | 64 bits |
Access password: | 32 bits |
Kill password: | 32 bits |
Data retention: | 10 years |
Write endurance: | 10,000 cycle |
Applications | |
Vehicle management and etc. |
Broadradio has excellent independent innovation ability and professional technical team. The main RFID members are designers or main bearers of Wal-Mart project series labels, Wuliangye fragile security labels, UHF book labels, and national standard vehicle electronic labels. At present, Broadradio has obtained a number of national patents and PCT international patents.
