Place of Origin | China shenzhen |
Brand Name | broadradio |
Certification | RoHS |
Model Number | BRA-01SR |

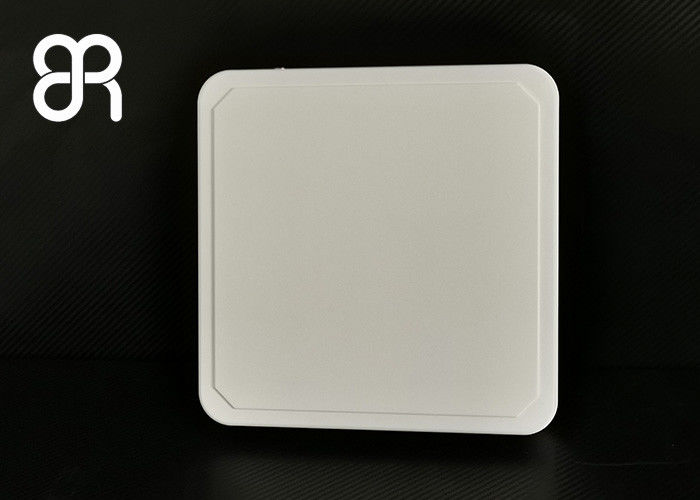

BRA-01SR 860MHz~960MHz 8.5dBic UHF RFID antenna,Front-to-Back Ratio ≥ 15dB IP65 Production
Broadradio implements the global business strategy, strengthens the development of the international market, increases interaction with customers and suppliers, responds to customer needs quickly and comprehensively, and establishes a more stable long-term partnership. At the same time, Broadradio implements forward-looking and characteristic solutions based on local conditions, and promotes Broadcom's intelligent products and services to be widely used in all walks of life, providing global users and partners with an overall RFID that keeps pace with the times. )solution.
1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.
2)Mechanical Properties: circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.
3)Product advantage: low profile, excellent VSWR and axial ratio parameter, anti-UV aging and high protection class.
4)Product Applications:BRA-01SR Antenna is of convenient application in middle-distance parking management system, archives management, logistic management, asset management, storage management, personnel management and other IoT fields. Applications: warehouse, logistics distribution center, airport, hospital, logistics terminal, goods transfer belt, file cabinet and etc.
Frequency Range | 860MHz~960MHz |
VSWR | ≤1.3:1 |
Gain | > 8.5 dBic |
H side HPBW | 70° |
E side HPBW | 70° |
Polarization | Circular Polarization |
Axial ratio |
<3 dB |
Front-to-Back Ratio |
≥ 15dB |
Impedance | 50±1Ω |
Connector Type |
RP-TNC Female |
1) The antenna is used for far field applications in the UHF band
2) Side feed design, easy to install
3) Connector type is TNC external thread inner needle
4) Double waterproof design with waterproof ring and silicone, protection grade IP65
Suitable for warehouses, warehouses, logistics distribution centers, airports, hospitals, logistics and transportation terminals, goods conveyors, file filing cabinets, etc.
