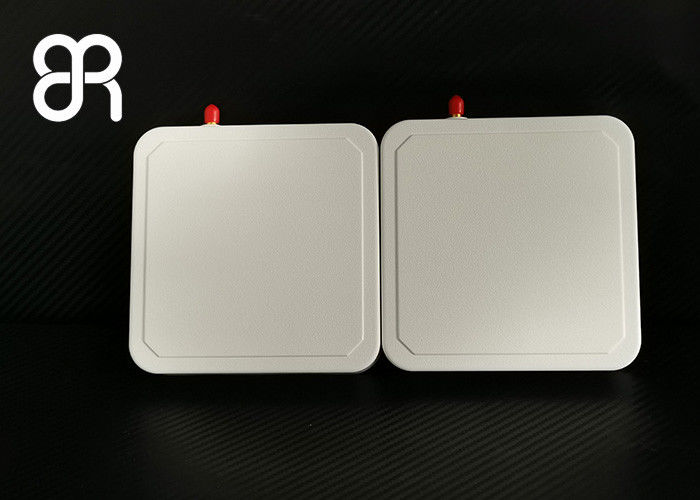

IP67 Circular Polarization 860-960MHz 6dBic UHF RFID Antenna

IP67 Circular Polarization 860-960MHz 6dBic UHF RFID Antenna

IP67 Circular Polarization 860-960MHz 6dBic UHF RFID Antenna
IP67 Circular Polarization 860-960MHz 6dBic UHF RFID Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 2-5work days
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Name: UHF RFID Antenna,6dBic RFID Antenna Size: 128mm×128mm×20mm
Weight: 0.3kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Production Class: IP67
Operating Temperature: -40℃~+ 85℃ Storage Temperature: -40℃~+ 85℃
High Light:

960MHz UHF RFID Antenna


6dBic UHF RFID Antenna


IP67 High Gain Rfid Antenna

BRA-02SR Frequency 860-960MHz Small Size Gain 6dBic UHF RFID Antenna



As we all know, RFID antenna is an indispensable part of RFID system. In a wireless communication system, it is necessary to convert the guided wave energy from the transmitter into radio waves, or convert the radio waves into guided wave energy, and the device used to radiate and receive radio waves is called an antenna.

Product Function and Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

Product Applications:BRA-02 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



Performance Specifications

Frequency Range 902MHz~928MHz(865~)
VSWR ≤1.3:1
Gain > 6 dBic
H side HPBW 90°
E side HPBW 90°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA-50KFD Female


Mechanical Specifications

Size 128mm×128mm×20mm
Weight 0.3kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃


The main test capabilities

Antenna gain

Antenna directivity


Antenna efficiency

Radiated power

Label sensitivity

Label performance


Broadradio implements the global business strategy, strengthens the development of the international market, increases interaction with customers and suppliers, responds to customer needs quickly and comprehensively, and establishes a more stable long-term partnership. At the same time, Broadradio implements forward-looking and characteristic solutions based on local conditions, and promotes Broadcom's intelligent products and services to be widely used in all walks of life, providing global users and partners with an overall RFID that keeps pace with the times. )solution.


IP67 Circular Polarization 860-960MHz 6dBic UHF RFID Antenna 0
