Place of Origin: | China shenzhen |
Brand Name: | broadradio |
Certification: | RoHS |
Model Number: | BRA-01SR |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 5-8work days |
Payment Terms: | T/T, PayPal |
Name: | UHF RFID Antenna,8.5dBic RFID Antenna | Size: | 258mm×258mm×36mm |
---|---|---|---|
Weight: | 0.8kg | Color: | Milk-white |
Material: | Engineering Plastics ASA, Aluminum | Production Class: | IP65 |
High Light: | 8.5dBic Rfid Chip Antenna,Circular Polarization Rfid Chip Antenna,960MHz High Gain Uhf Antenna |

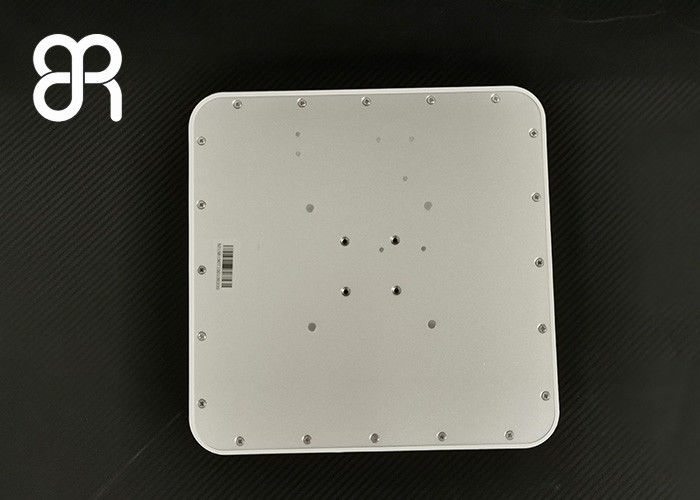

BRA-01SR 860MHz~960MHz 8.5 DBic Gain Side Feed Design UHF RFID Antenna VSWR≤1.3
1) Management team of Japanese-funded enterprises to ensure production order
2) Excellent import operation and test equipment to ensure product accuracy
3) Efficient job management process to ensure production efficiency
4) Strict quality control mechanism to ensure product quality
5) Passed ISO9001: 2018 quality management system certification
1) The antenna is used for far field applications in the UHF band
2) Side feed design, easy to install
3) Connector type is TNC external thread inner needle
4) Double waterproof design with waterproof ring and silicone, protection grade IP65
Suitable for warehouses, warehouses, logistics distribution centers, airports, hospitals, logistics and transportation terminals, goods conveyors, file filing cabinets, etc.
Frequency Range | 860MHz~960MHz |
VSWR | ≤1.3:1 |
Gain | > 8.5 dBic |
H side HPBW | 70° |
E side HPBW | 70° |
Polarization | Circular Polarization |
Axial ratio |
<3 dB |
Front-to-Back Ratio |
≥ 15dB |
Impedance | 50±1Ω |
Connector Type |
RP-TNC Female |
Connector Position |
Side |
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
Contact Person: Mr. Cliff.lee
Tel: +86 137 2186 9531
Fax: 86-755-26651609
