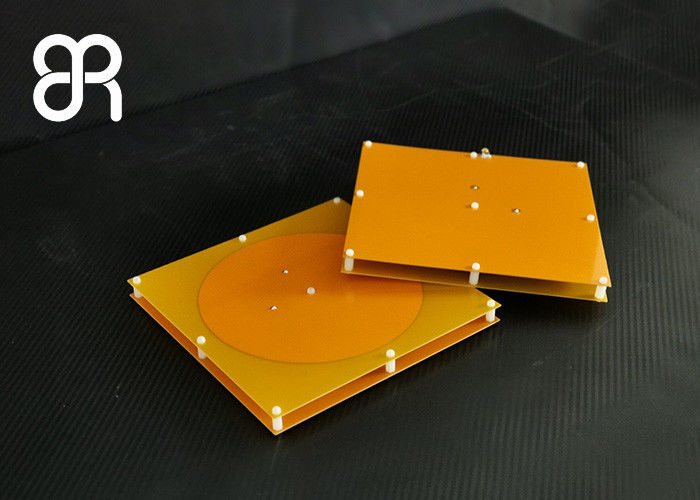

SMA Male Connector IP54 Circular Polarized UHF RFID Antenna

SMA Male Connector IP54 Circular Polarized UHF RFID Antenna

SMA Male Connector IP54 Circular Polarized UHF RFID Antenna
SMA Male Connector IP54 Circular Polarized UHF RFID Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-06
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: 8dBic RFID Antenna,UHF RFID Antenna Size: 190mm×190mm×18.6mm
Weight: 0.73kg Material: Plastics, Aluminum, FR4
Color: Luxury Gold Or Green Production Class: IP54
Operating Temperature: -40℃~+ 85℃ Email:
High Light:

Circular Polarized UHF RFID Antenna


IP54 UHF RFID Antenna


SMA Male Connector RFID Antenna

BRA-06 SMA Male Connector UHF RFID Antenna Circular Polarized Antenna IP54 Production


Core technology advantage

1) Have complete RFID and testing equipment, including darkroom, network analyzer, label tester, comprehensive tester, etc.;

2) Master core technologies such as phase control technology, multi-beam phase control system, wide-band vibrator and multi-system design;

3) Have rich application and project experience, have done RFID projects of various application types, and are familiar with how to choose antenna, label and reader products to get the best system integration effect.

Antenna Features

1) Ultra-thin design of the antenna, the thickness is only 18.6mm

2)Electrical Properties: It is a general antenna with high gain, low VSWR, wide AR band and etc.

3)Mechanical Properties:  easy to install, it fits all the domestic and foreign model UHF readers and brings the best performance of the reader.

4)BRA-06 Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.


SMA Male Connector IP54 Circular Polarized UHF RFID Antenna 0

Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain 8 dBic
H side HPBW 102°
E side HPBW 102°
Polarization Circular polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type SMA Male (Customizable)


The main test capabilities

Antenna gain

Antenna directivity


Antenna efficiency

Radiated power

Label sensitivity

Label performance


Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
